Brother MFC-J2330DW Service Manual

3-55
Confidential

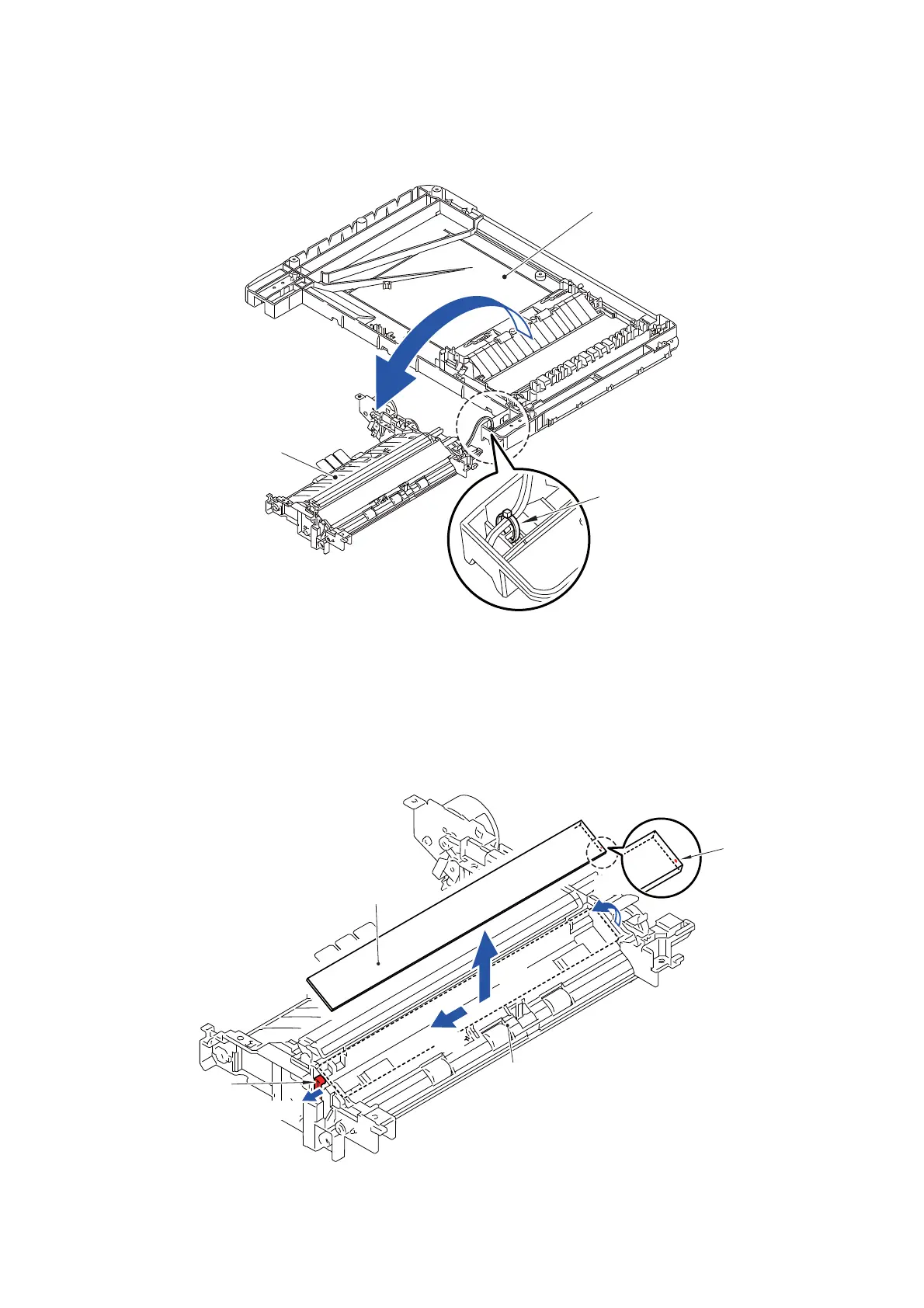

(9) Place the Lower doc chute ASSY and Document cover base ASSY as shown in
the figure.
Note: Perform this step without cutting the Cable tie.
Fig. 3-43
(10)While pressing the section “A” in the direction of the arrow 10a, slide the Cover
glass in the direction of the arrow 10b.
(11)Remove the Cover glass from the Lower doc chute ASSY in the order of the arrow
11a and arrow 11b.
Assembling Note: When mounting the Cover glass, mount it as the red mark comes
to the position shown in the figure.
Fig. 3-44
Document cover base ASSY
Lower doc chute ASSY
Cable tie
Cover glass
Lower doc chute ASSY
10a
10b
11a
11b
Color mark
“A”

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
