(15)Peel off the First side CIS flat cable which is secured with Double-sided adhesive
tape.
(16)Peel off the FFC film which is secured with Double-sided adhesive tape from the
First side CIS flat cable.

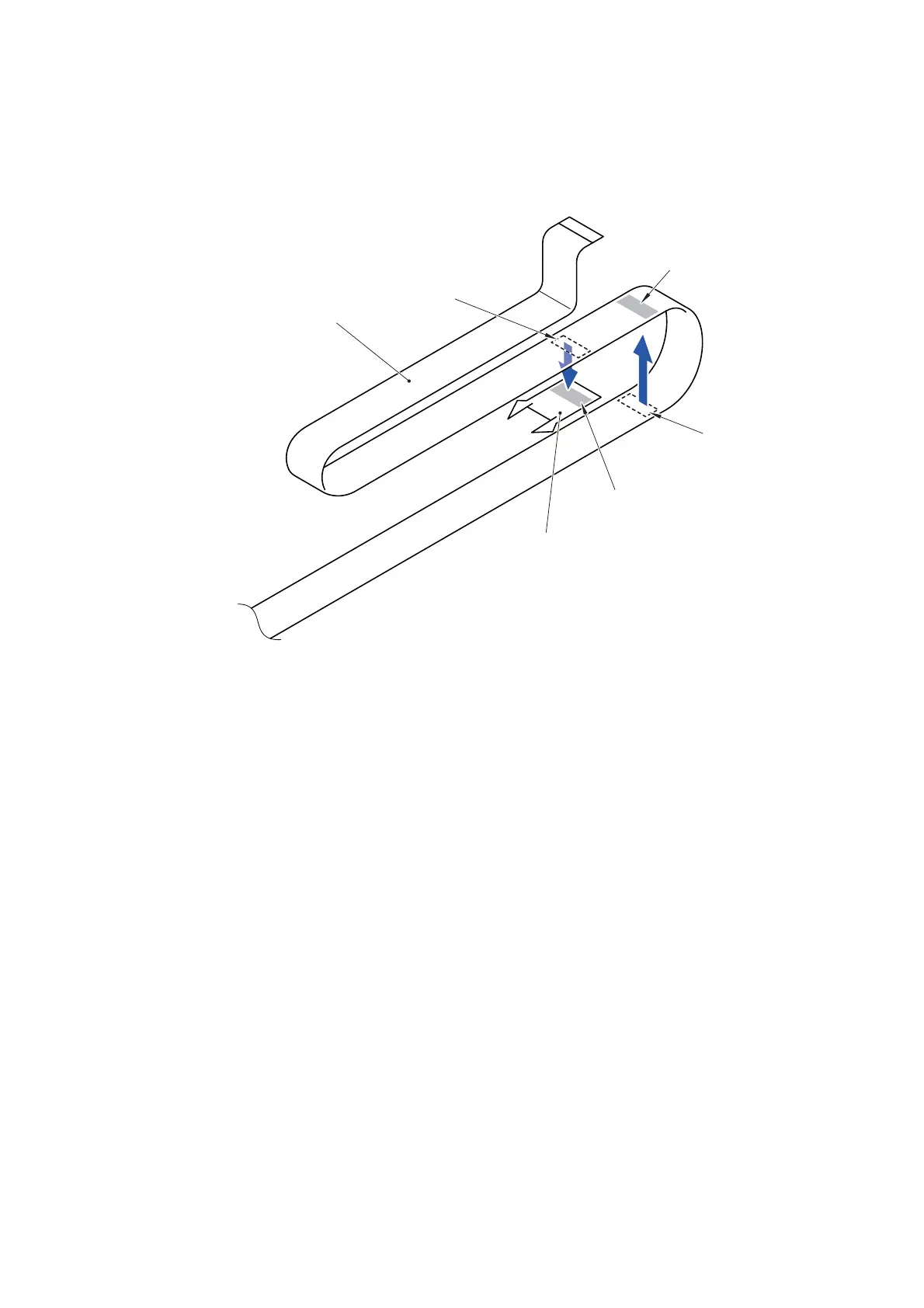

Fig. 3-51
First side CIS flat cable
FFC film
Double-sided adhesive tape
Double-sided
adhesive tape
attachment
position
Double-sided adhesive tape
attachment position
15
16
Double-sided adhesive tape
