3-66
Confidential
(4) Remove the five screws (TAPTITE BIND B M4x12) and remove the Upper cover
from the Lower cover.

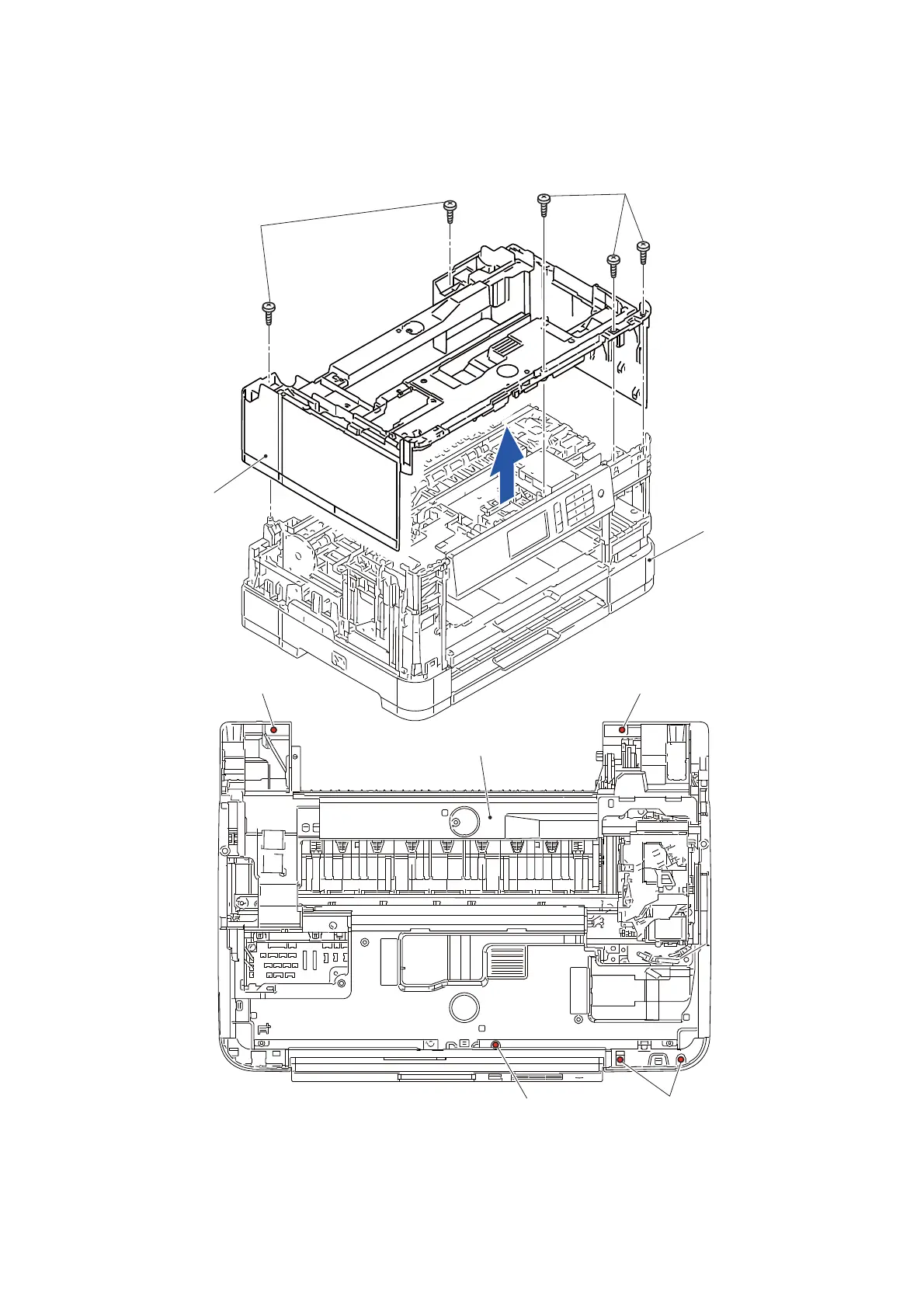

Fig. 3-59
TAPTITE BIND B
Upper cover
Lower cover
M4x12
<Top view>
TAPTITE BIND B M4x12
TAPTITE BIND B M4x12
TAPTITE BIND B M4x12
Upper cover
TAPTITE BIND B M4x12
TAPTITE BIND B M4x12
