3-67
Confidential

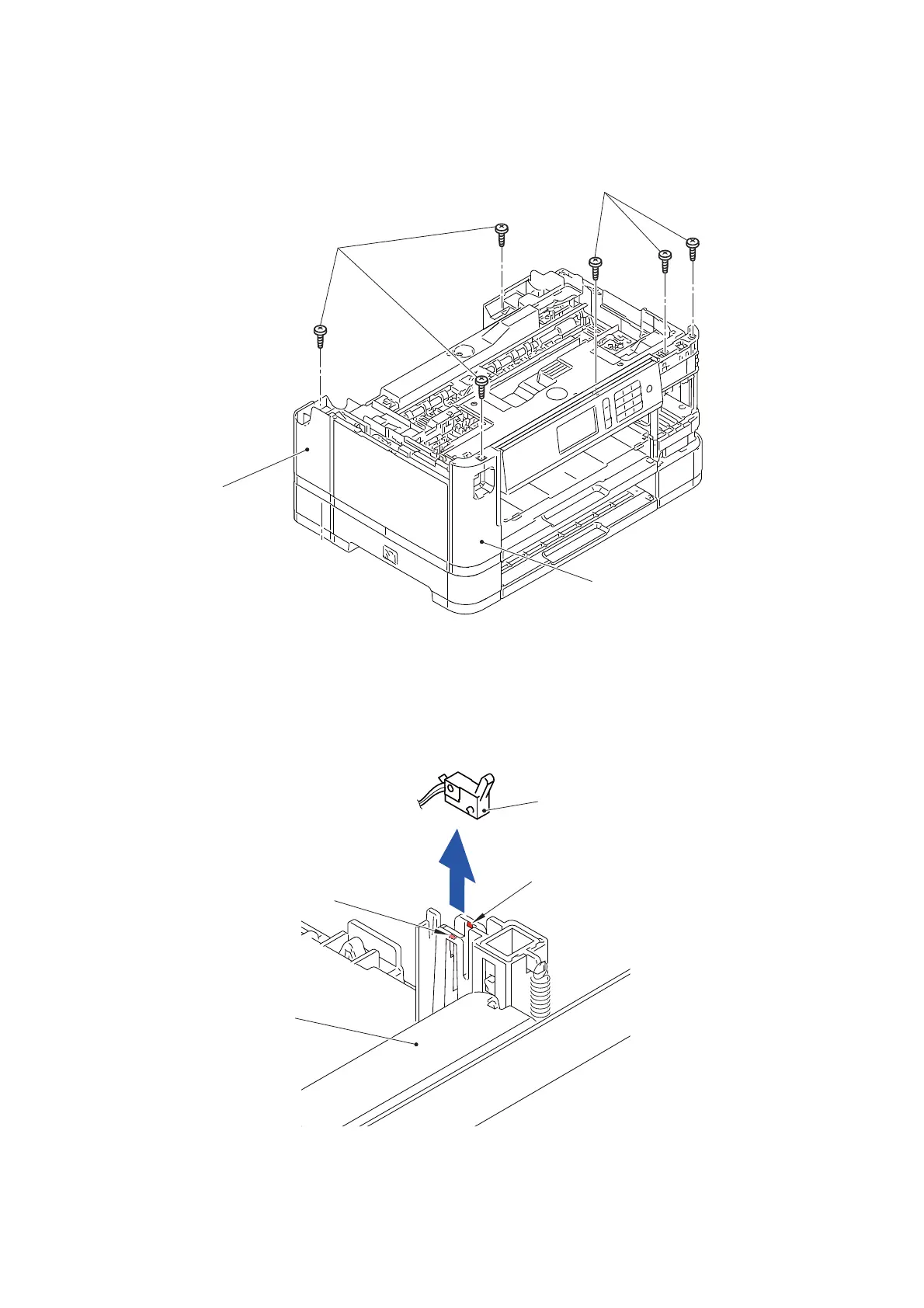

Assembling Note: When assembling the Upper cover, assemble the Upper cover and
Front cover L first and then tighten the screws in the order as
shown in the figure below.
Fig. 3-60
(5) Turn the Upper cover upside down.
(6) Release the wiring of the Document scanner sensor.
(7) Release the two Hooks and remove the Document scanner sensor from the Upper
cover.
Fig. 3-61
Upper cover
Front cover L
TAPTITE BIND B M4x12
TAPTITE BIND B M4x12
1
2
3
4
6
5
Upper cover
Hook
Document scanner sensor
Hook
