3-68
Confidential

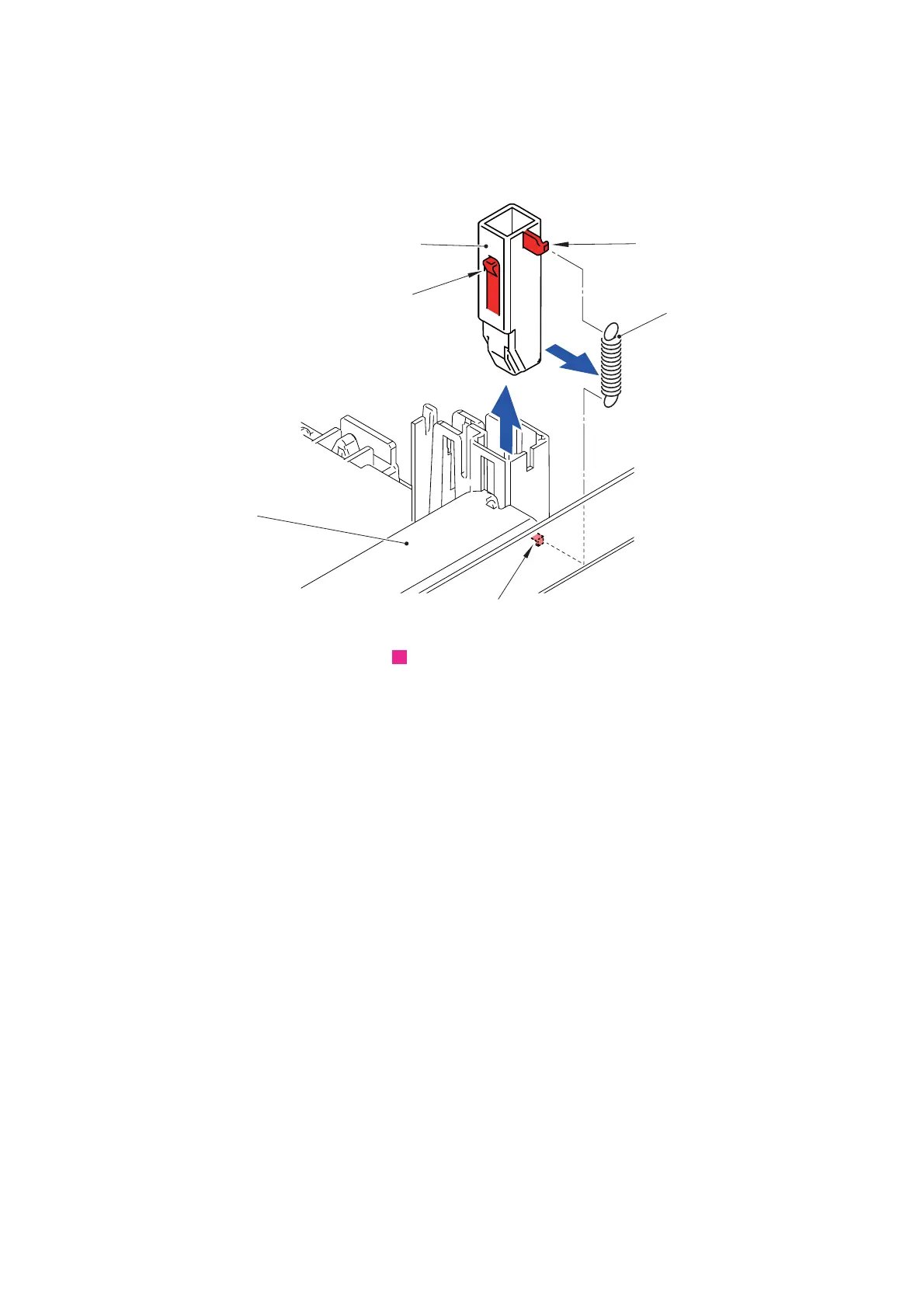

(8) Remove the FB open sensor spring from the Hook of the FB open sensor actuator
and the Hook of the Upper cover.
(9) Release the Hook and remove the FB open sensor actuator from the Upper cover.
Fig. 3-62
Routing of harnesses: See “ Upper cover”.
FB open sensor actuator
Hook
FB open sensor spring
Upper cover
Hook
Hook
8
9
19
