3-98
Confidential
(6) Remove the two screws (SCREW CUP M3x6) and remove the Main PCB earth
frame R2 from the Switchback frame ASSY.

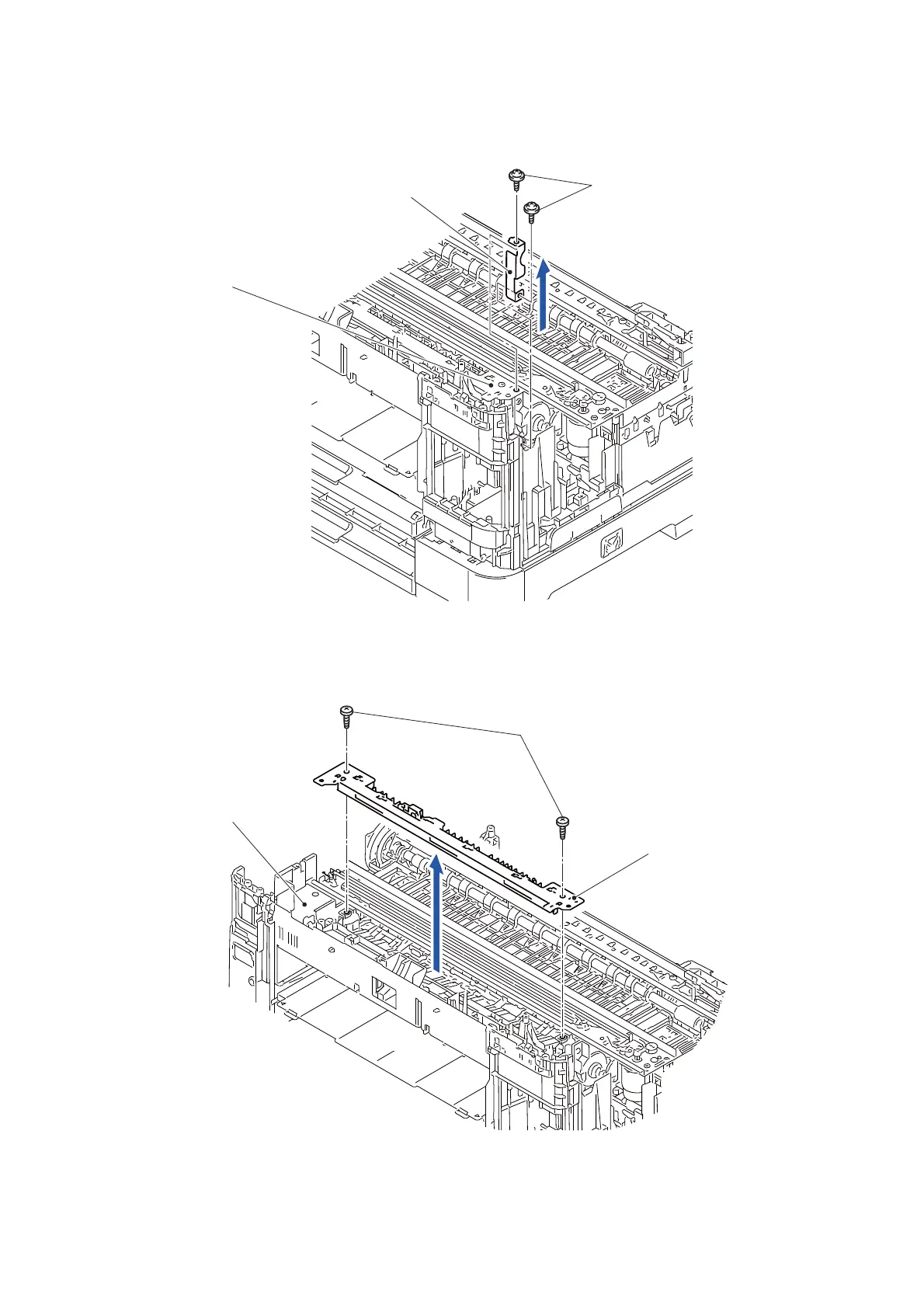

Fig. 3-113
(7) Remove the two screws (SCREW BIND M3x6) and remove the Switchback frame
ASSY from the Main body.
Fig. 3-114
Main PCB earth frame R2
SCREW CUP M3x6
Switchback frame ASSY
Switchback frame ASSY
SCREW BIND M3x6
Main body
