Brother MFC-J2330DW Service Manual

3-99
Confidential

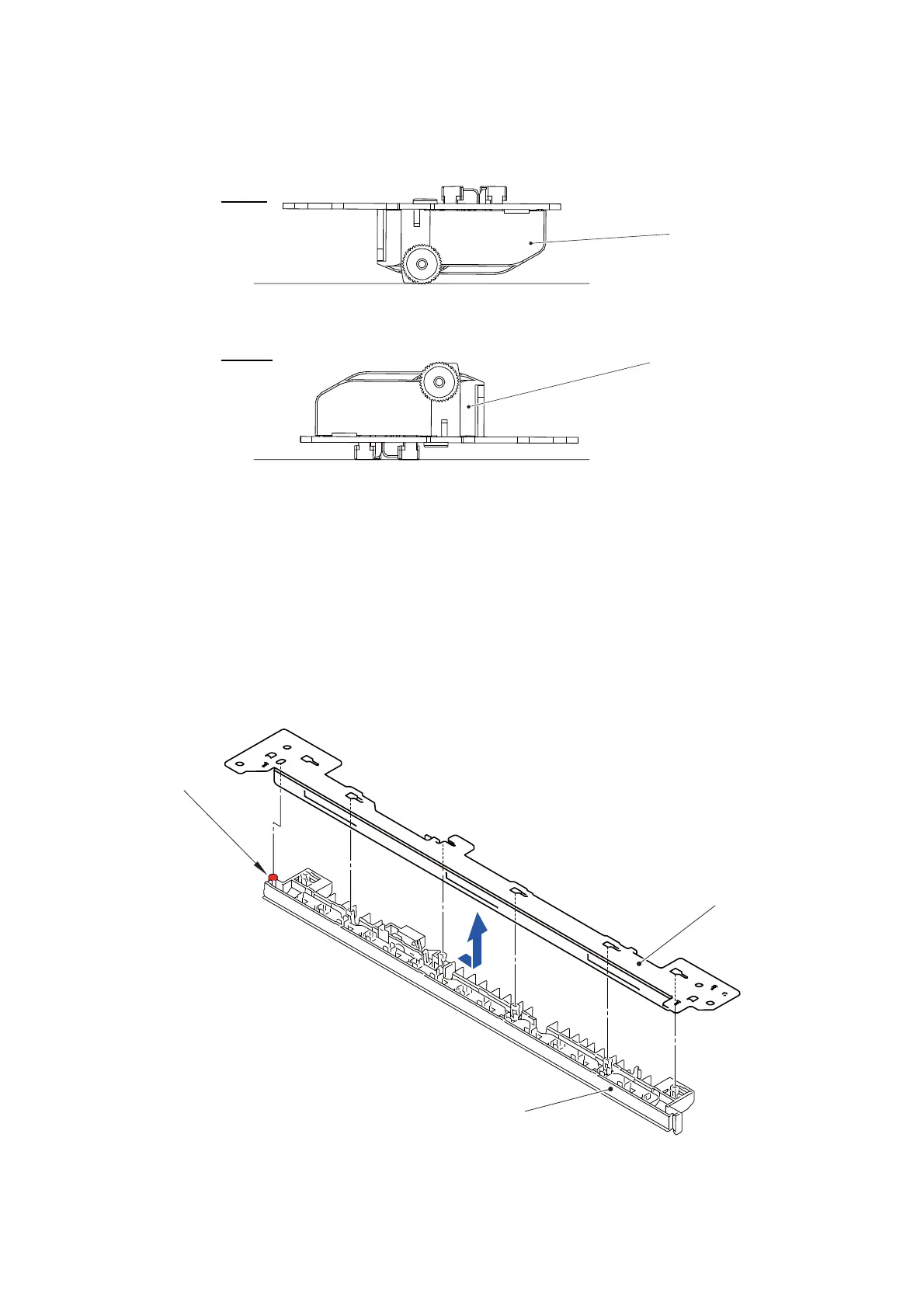

Note: When placing the Switchback frame ASSY, be sure to place it as shown in the
figure below.
Fig. 3-115
Assembling Note:
- When assembling the Switchback frame ASSY, tighten the two screws as the
Switchback frame ASSY is pushed into the Rear side.
- Verify that the Switchback frame ASSY is not rattled.
(8) While the Boss of the SB star wheel holder is released, slide the SB frame in the
direction of the arrow to remove it.
Fig. 3-116
Switchback frame ASSY
Switchback frame ASSY
Correct
Wrong
SB star wheel holder
SB frame
Boss
