Brother MFC-J2330DW Service Manual

3-107
Confidential

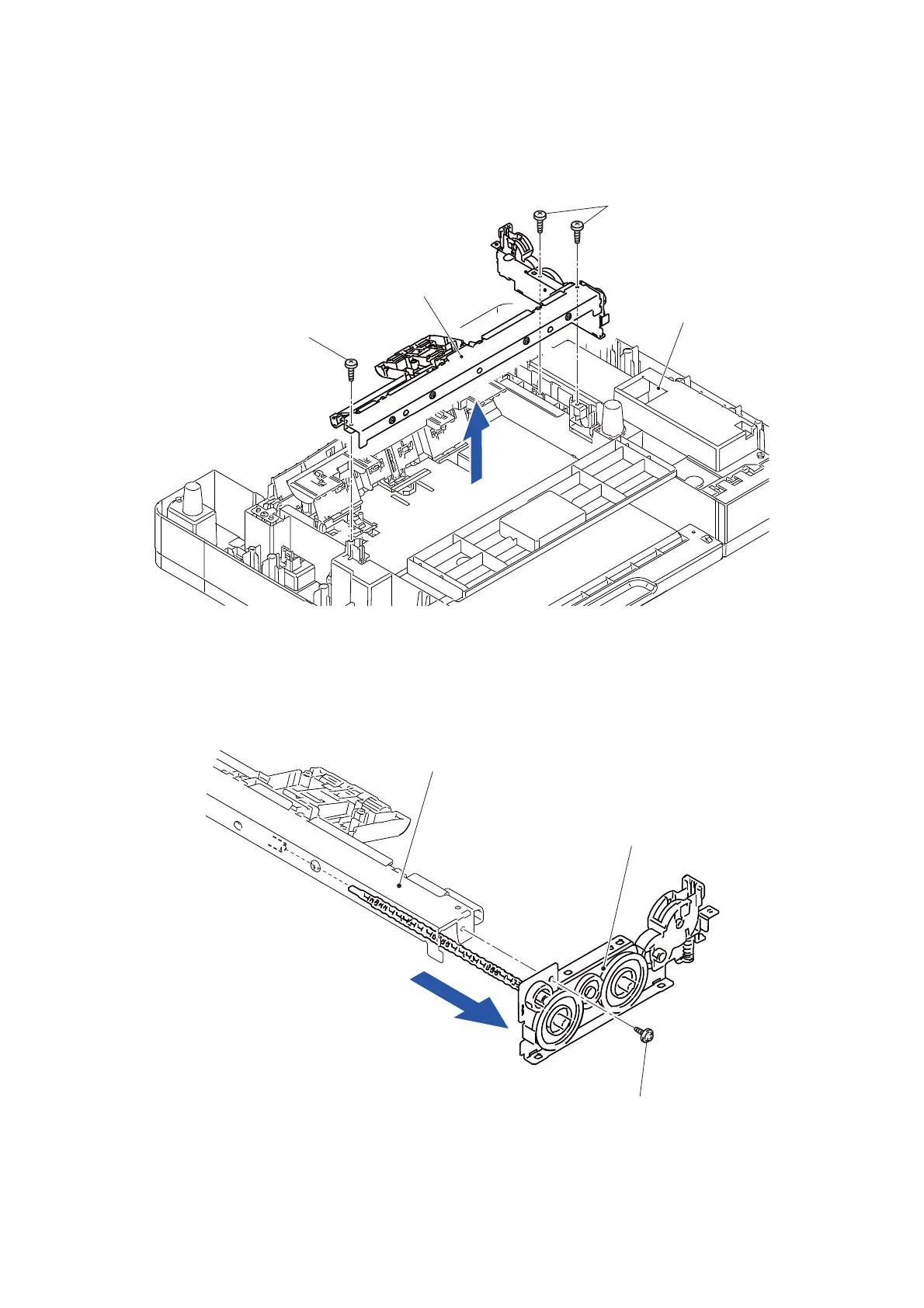

(3) Release the wiring of the LT frame ASSY.
(4) Remove the three screws (TAPTITE CUP B M3x10) and remove the LT frame
ASSY from the Lower tray unit.
Fig. 3-128
(5) Remove the screw (SCREW CUP M3x6) and remove the Idle gear holder frame LT
ASSY from the LT frame ASSY.
Fig. 3-129
TAPTITE CUP B M3x10
TAPTITE CUP B M3x10
LT frame ASSY
Lower tray unit
Idle gear holder frame LT ASSY
SCREW CUP M3x6
LT frame ASSY

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
