Brother MFC-J2330DW Service Manual

3-108
Confidential

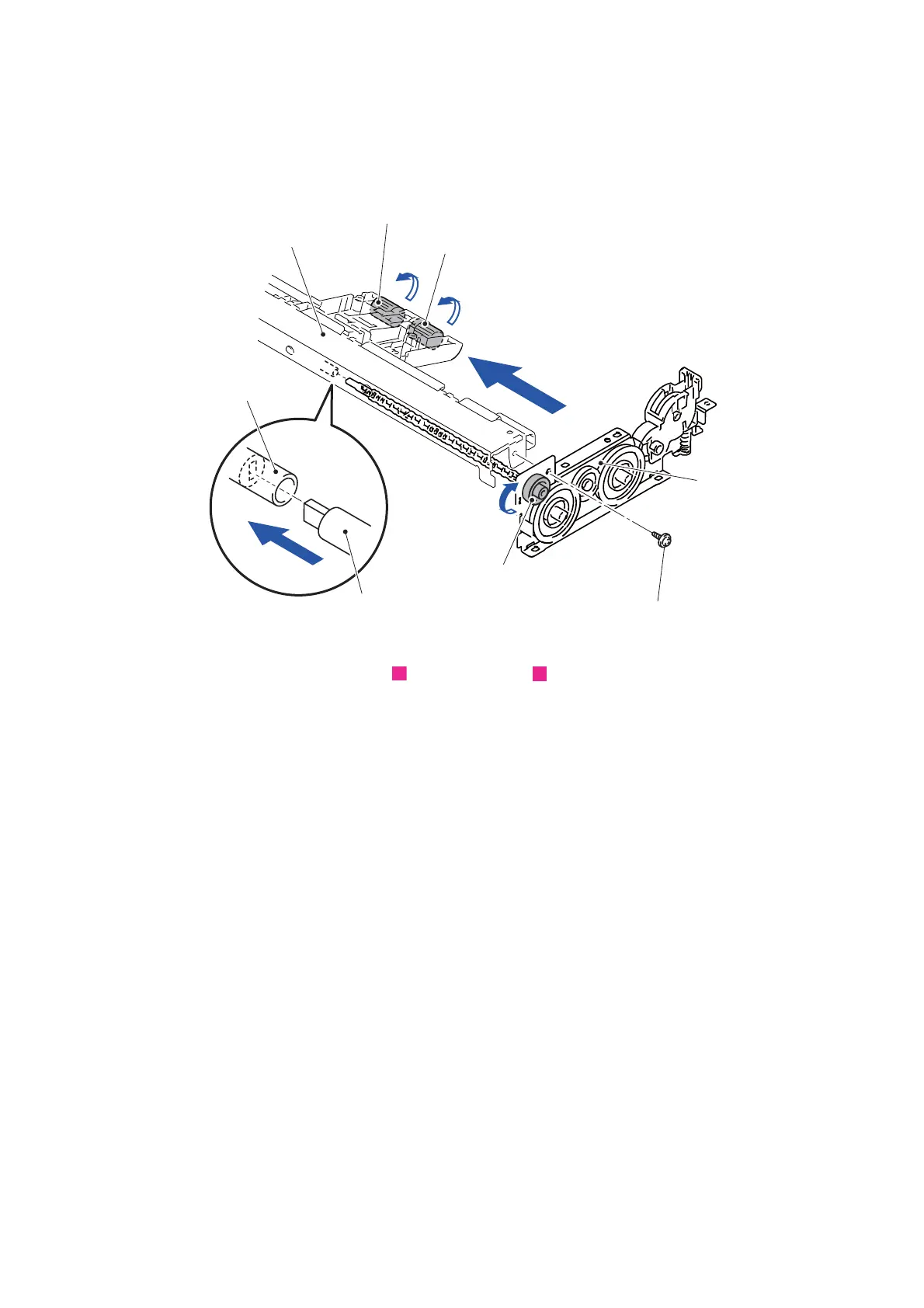

Assembling Note: Insert the shaft of the ASF gear shaft LT into the LT frame ASSY as
fitting it to the hole of the bushing.
Turn the ASF gear shaft LT and check that the ASF roller turns.
Fig. 3-130
Routing of harnesses: See “ Lower cover”, “ Lower tray”.
SCREW CUP M3x6
LT frame ASSY
ASF gear shaft LT
ASF gear shaft LT
LT frame ASSY
ASF roller
ASF roller
Idle gear holder
frame LT ASSY
10
16

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
