Brother MFC-J2330DW Service Manual

3-126
Confidential

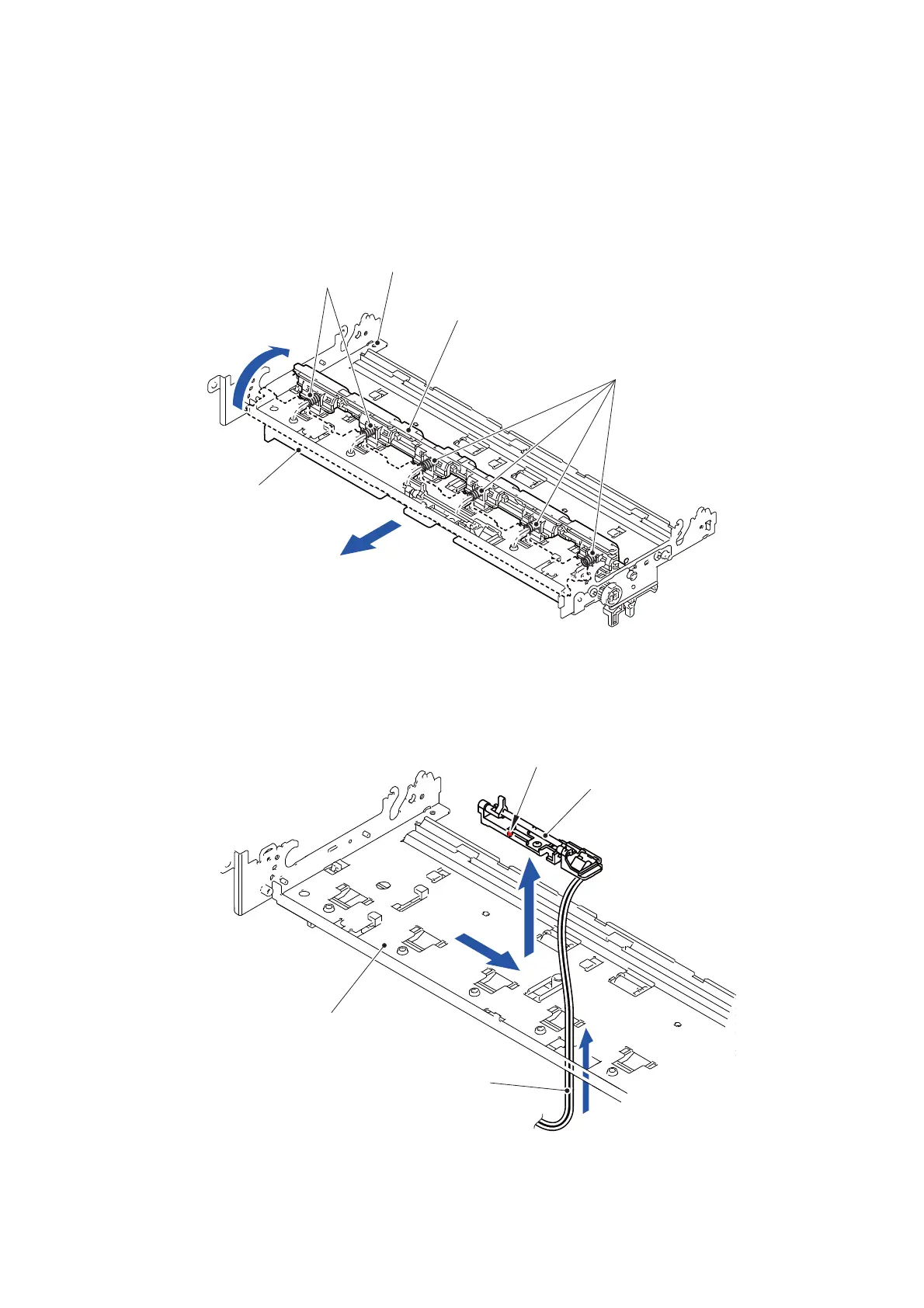

(5) Slide the PF release guide in the direction of the arrow 5a, and remove the
Pressure roller holder from the Frame base ASSY.
Note: When removing the Pressure roller holder, be careful not to lose any Spring.
Assembling Note: When assembling the Pressure roller holder, assemble it as fitting
the Springs to the Bosses.
Fig. 3-160
(6) While sliding the Registration sensor holder ASSY in the direction of the arrow 6a,
remove the Boss and then remove the Registration sensor holder ASSY from the
Frame base ASSY.
Fig. 3-161
Springs
Springs
Pressure roller holder
Frame base ASSY
PF release guide
5a
5b
Boss
Registration sensor holder ASSY
6a
Registration sensor harness
Frame base ASSY
6b

Brother MFC-J2330DW Specifications

General

Print Technology	Inkjet
Functions	Print, Copy, Scan, Fax
Connectivity	USB, Ethernet, Wi-Fi, Wi-Fi Direct
Scan Resolution	1200 x 2400 dpi
Fax Speed	33.6 kbps
Max Print Resolution	4800 x 1200 dpi
Print Speed (Black)	22 ppm
Print Speed (Color)	20 ppm
Duplex Printing	Automatic
Display	2.7" Touchscreen
ADF Capacity	50 sheets
Supported Paper Sizes	A3, A4
Operating System Support	Windows, macOS, Linux
Scanner Type	Flatbed, ADF
Mobile Printing	Brother iPrint&Scan, AirPrint, Google Cloud Print
Ink Cartridges	Black, Cyan, Magenta, Yellow
Paper Input Capacity	250 sheets
