Brother MFC-J2330DW Service Manual

3-127
Confidential

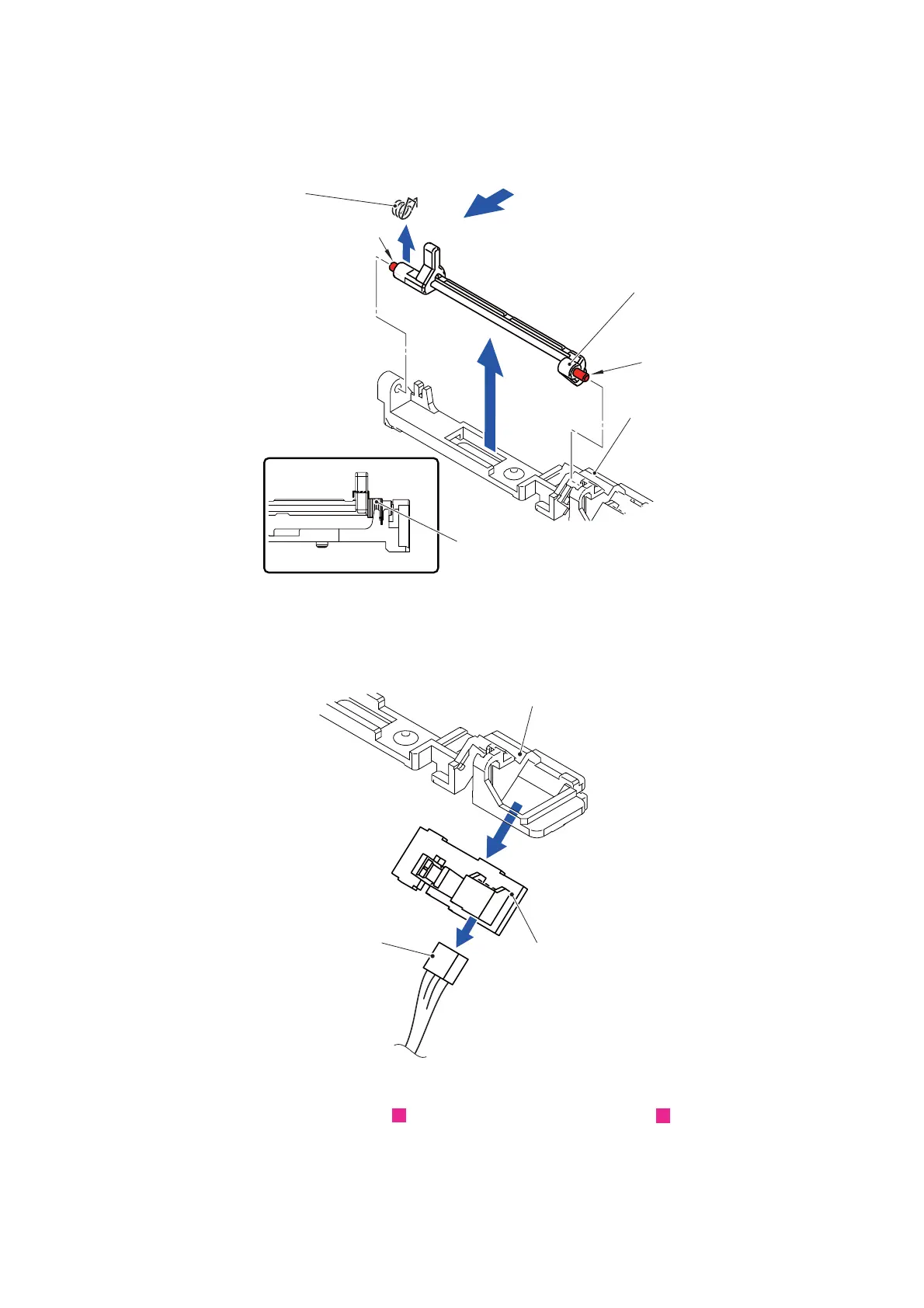

(7) Remove the Boss at one side and remove the Registration actuator and
Registration actuator spring from the Registration sensor holder.
Fig. 3-162
(8) Remove the Registration sensor PCB from the Registration sensor holder.
(9) Remove the Registration sensor harness from the Registration sensor PCB.
Fig. 3-163
Routing of harnesses: See “ Paper feed arm frame ASSY”, “ Registration
sensor harness”.
Boss
Registration actuator
Boss
Registration sensor holder
Registration actuator spring
Registration actuator spring
A view
<A view>
Registration sensor holder
Registration sensor PCB
Registration sensor harness
8
9
9
18
