1 - 17
1.6 Check MAC address
Communication with the machine is performed to check that the MAC address for
wired LAN can be read. This inspection is performed only for the QL-720NW. (Not
performed for the QL-710W.)
(1) Check that the inspection item is highlighted in yellow, then click the [Run] button.
To highlight the inspection item, use the [Up] or [Down] button on the screen or
use the [ ↑] / [ ↓] key on the keyboard to move the focus bar.

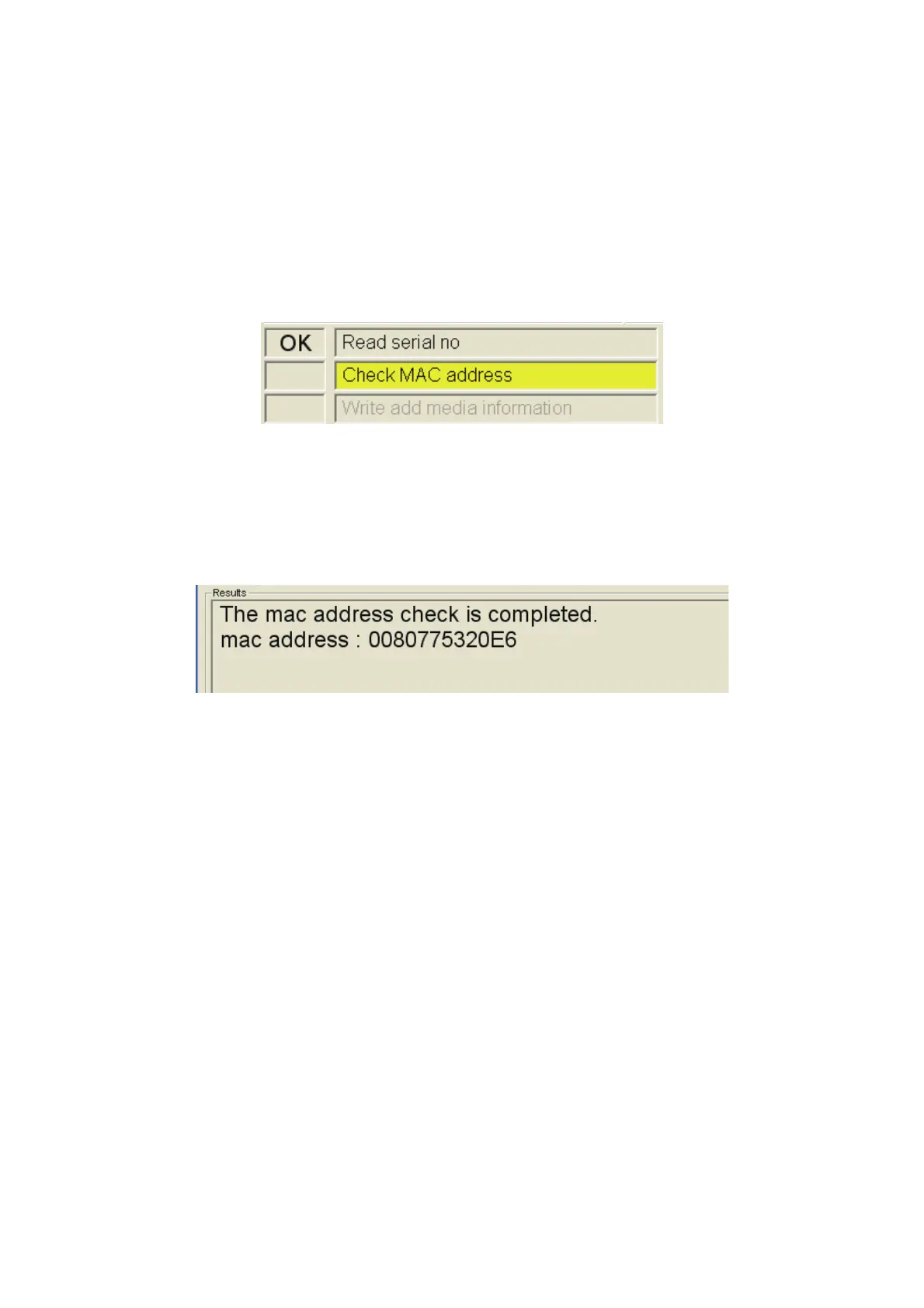

Fig. 22 “Check MAC address” start-up
(2) The read MAC address for wired LAN is displayed in “MAC address” field on the
top of the screen when the inspection is performed.
Successful message and MAC address also appear in the “Results” field.
The next inspection starts automatically when the inspection is completed.
Fig. 23 “Check MAC address” results
To Next Page
