II - 3
2.1.3 Tape Feed Mechanism
When the tape is set, the tape is pressed against the thermal head, which is nipped
between the platen and the thermal head. At this time the tape feed motor ASSY (step
motor) rotates, and its drive power is transmitted to the platen gear and the platen via
the gear train, and consequently the platen can feed the tape.

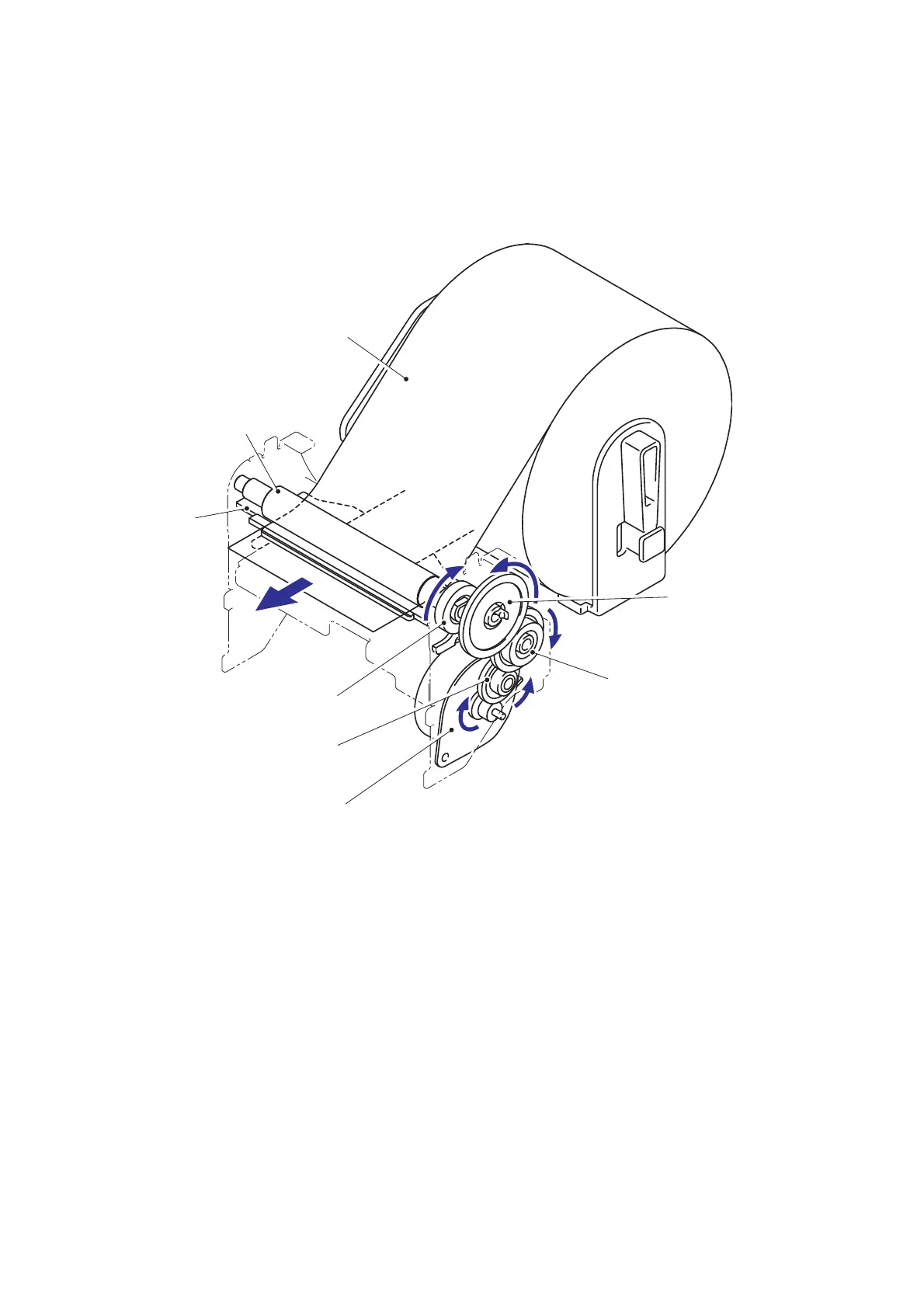

Fig. 2.1-3 Tape Feed Mechanism
Thermal tape
Thermal head
Platen
Double gear C
Double gear B
Platen gear
Double gear A
Tape feed motor ASSY
