Brother P-touch QL-710W - Mechanical Specifications Overview

I - 1
CHAPTER I SPECIFICATIONS
1.1 MECHANICAL SPECIFICATIONS
1.1.1 External Appearance
(1) Dimensions (W x D x H) 128mm x 236mm x 153mm
(2) Weight Approx. 1.20kg (Machine proper only)
Approx. 2.22kg (In package)

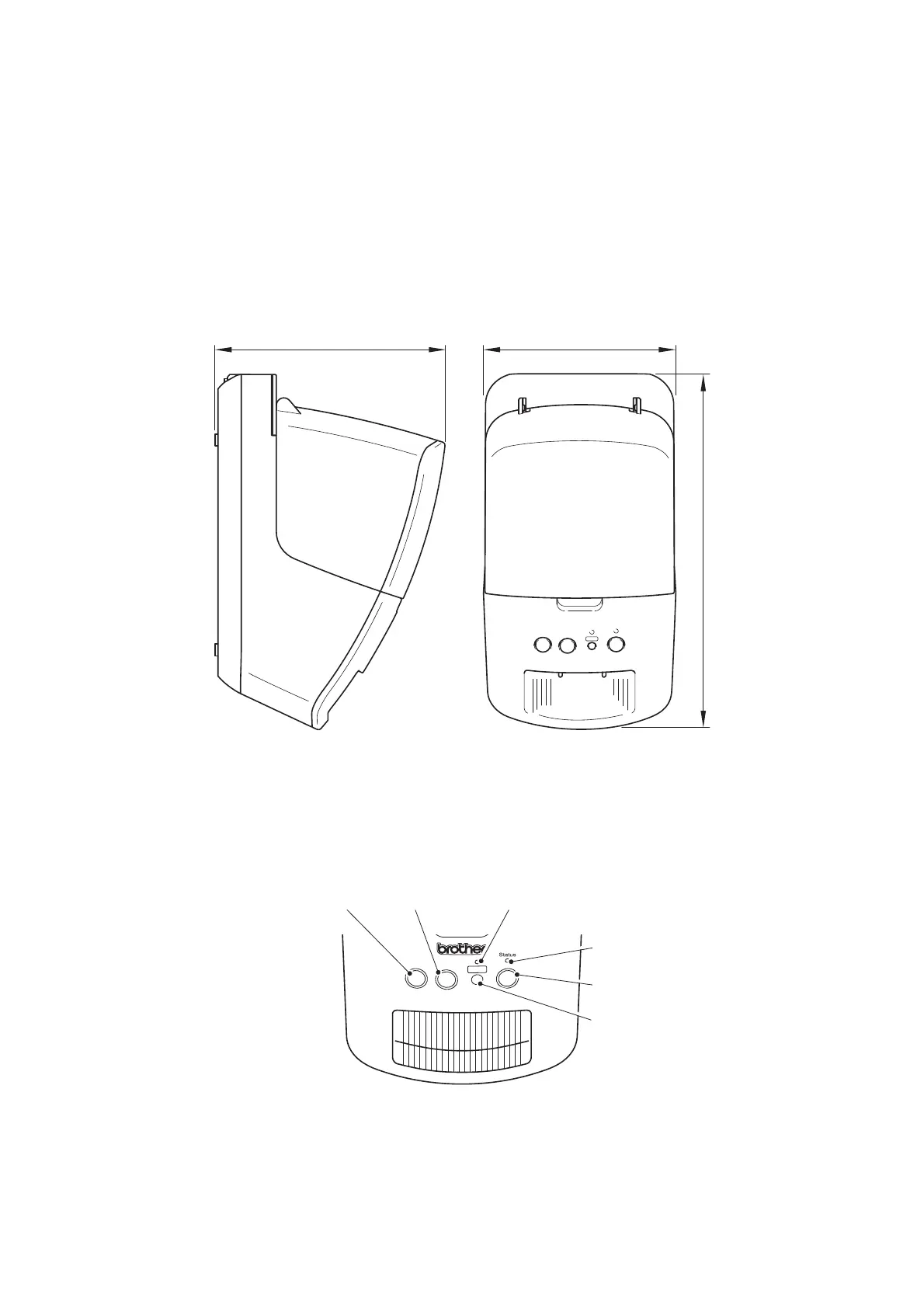

Fig. 1.1-1 External Appearance
1.1.2 Control Button and LED
(1) Number of buttons 4 (ON/OFF, Wi-Fi, Feed, Cut)
(2) Layout See Fig. 1.1-2
Fig. 1.1-2 Layout
153mm 128mm
236mm
Feed button Cut button Wi-Fi LED
Status LED
ON/OFF button
* Four buttons and two LED’s
Wi-Fi button
