III - 23
[11] Disassembling the Mecha ASSY
(1) Release the hook to remove the double gear C from the mecha ASSY.

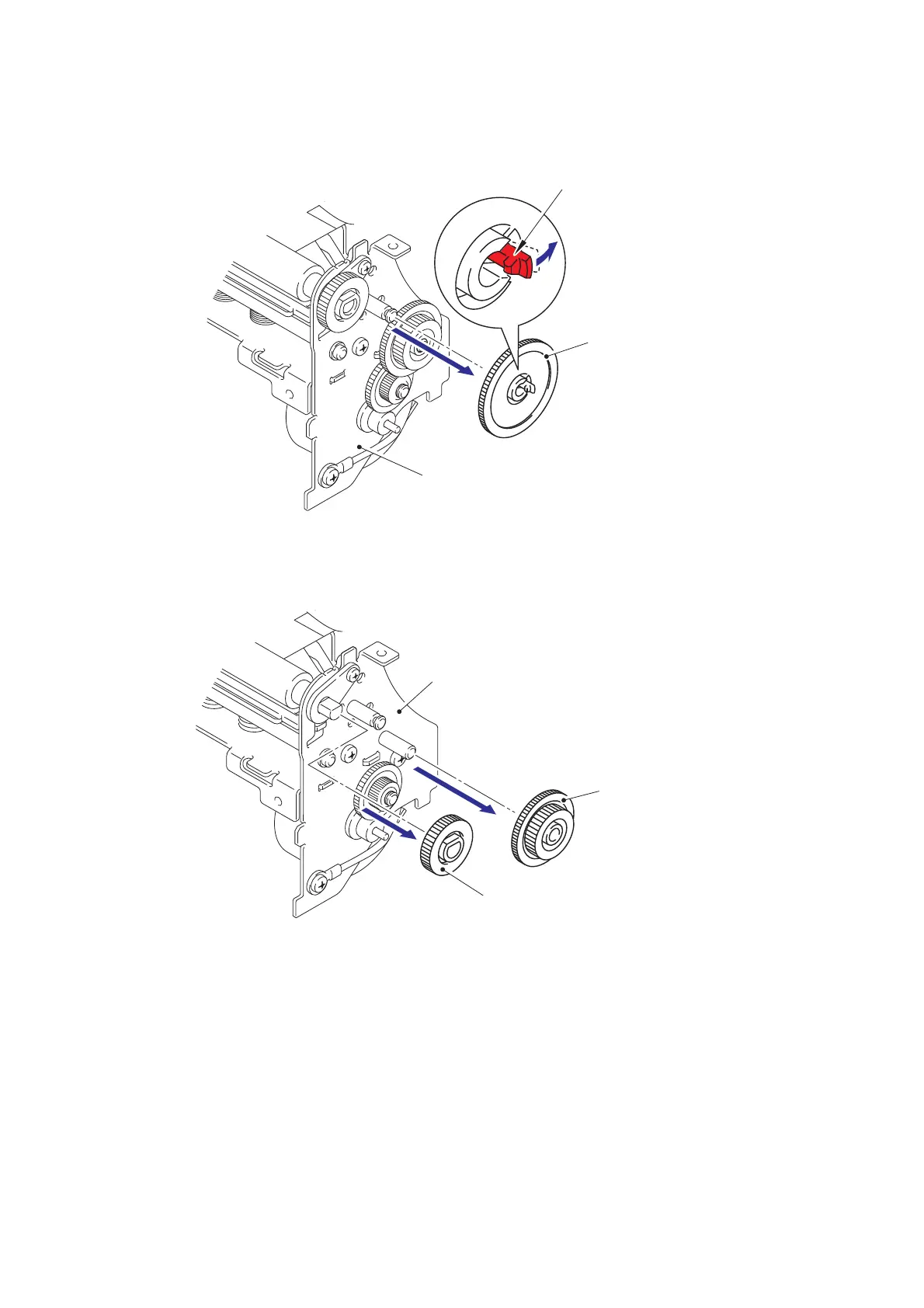

Fig. 3.4-28 Disassembling the Mecha ASSY (1)
(2) Remove the double gear B and the platen gear from the mecha ASSY.
Fig. 3.4-29 Disassembling the Mecha ASSY (2)
Hook
Double gear C
Mecha ASSY
Mecha ASSY
Double gear B
Platen gear
