[12] Installing the Top Cover ASSY and the Thermal Tape
(1) Secure the top cover ASSY with the two screws.

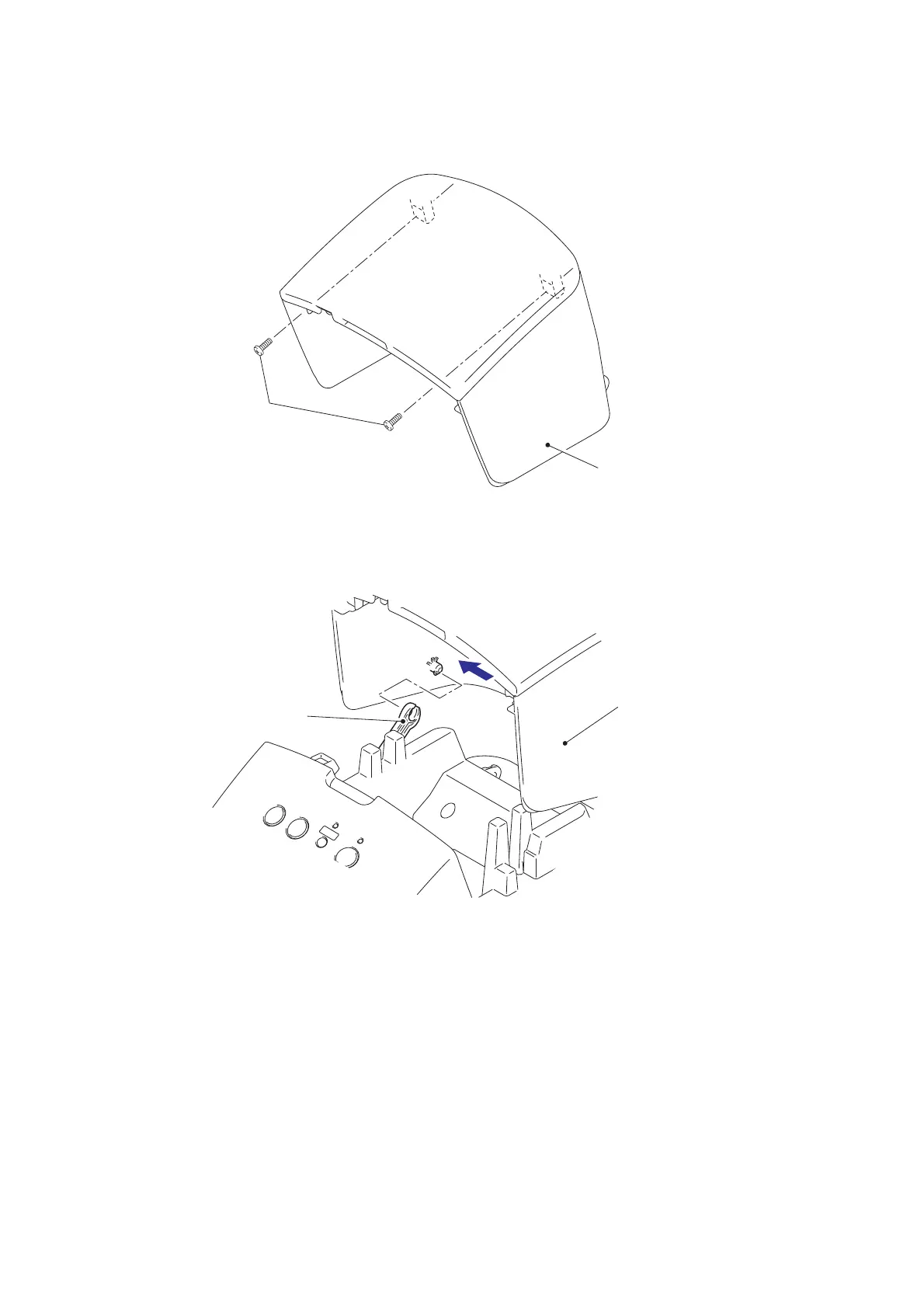

Fig. 3.5-38 Installing the Top Cover ASSY and the Thermal Tape (1)
(2) Set the link lever onto the top cover ASSY.
Fig. 3.5-39 Installing the Top Cover ASSY and the Thermal Tape (2)
Screws
Top cover ASSY
Top cover ASSY
Link lever
