II - 6
2.2 OUTLINE OF CONTROL ELECTRONICS

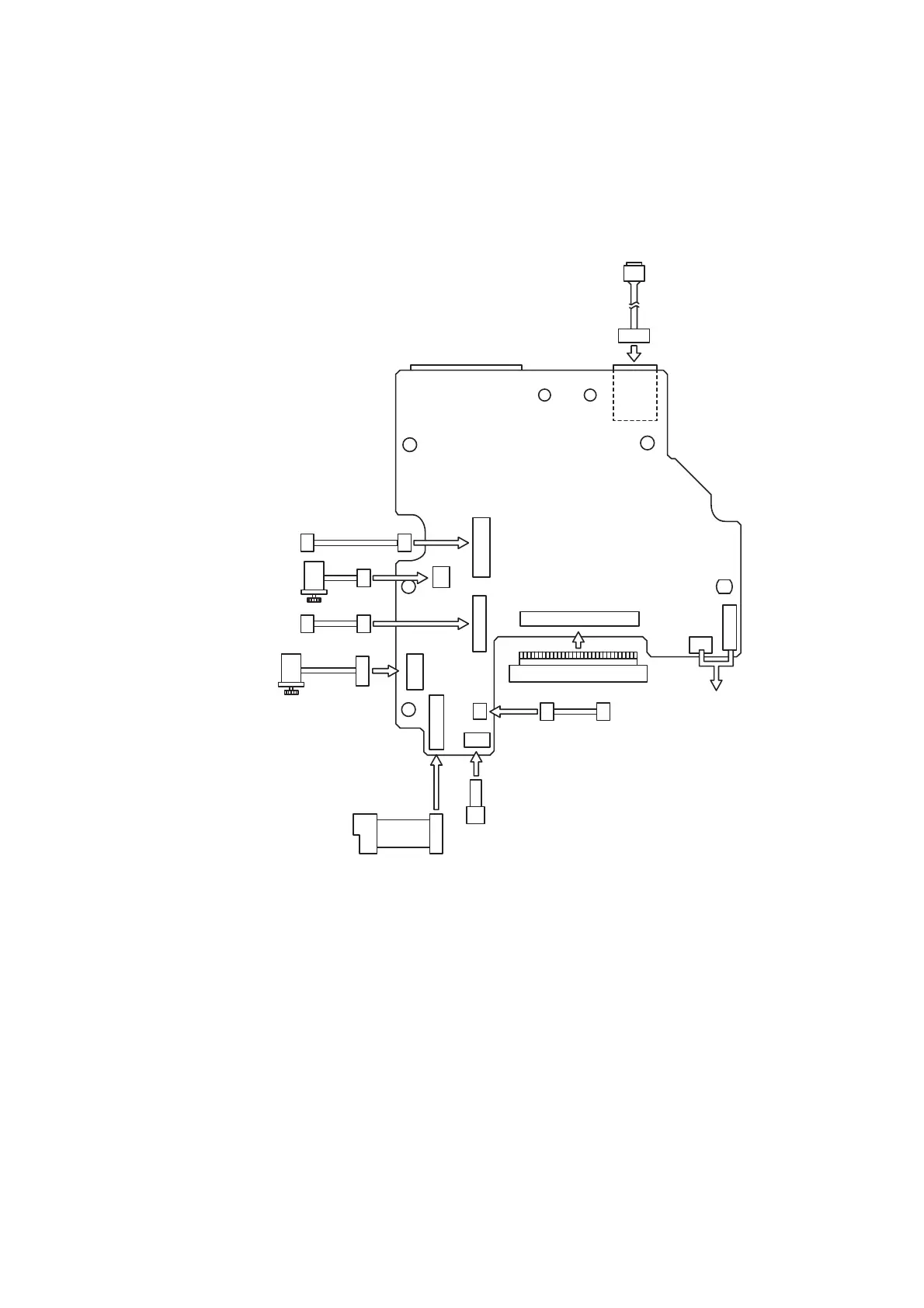

Fig. 2.2-1 and Fig. 2.2-2 show the block diagram of the control electronics. The
control electronics consist of the following components.
QL-710W
Fig. 2.2-1 Block Diagram of the Control Electronics (QL-710W)
CN8
CN2
CN1
CN9
CN3
CN10
CN7
CN6
CN5
CN4
CN11
Wi-Fi PCB ASSY
PC
Full cutter motor
SB PCB ASSY
Tape feed motor
Media type detect switch PCB
Media position
detect sensor PCB
Thermal head
USB
Power supply ASSY
Cutter sensor
