2.1.5 Cover Open (Cover Lock) Sensor (Push Switch)
The cover open (cover lock) sensor (push switch) is mounted on the SB PCB ASSY.
Closing the top cover ASSY, the cover sensor arm pushes the cover open (cover lock)
sensor (push switch) and the signal of the top cover ASSY close status is output.

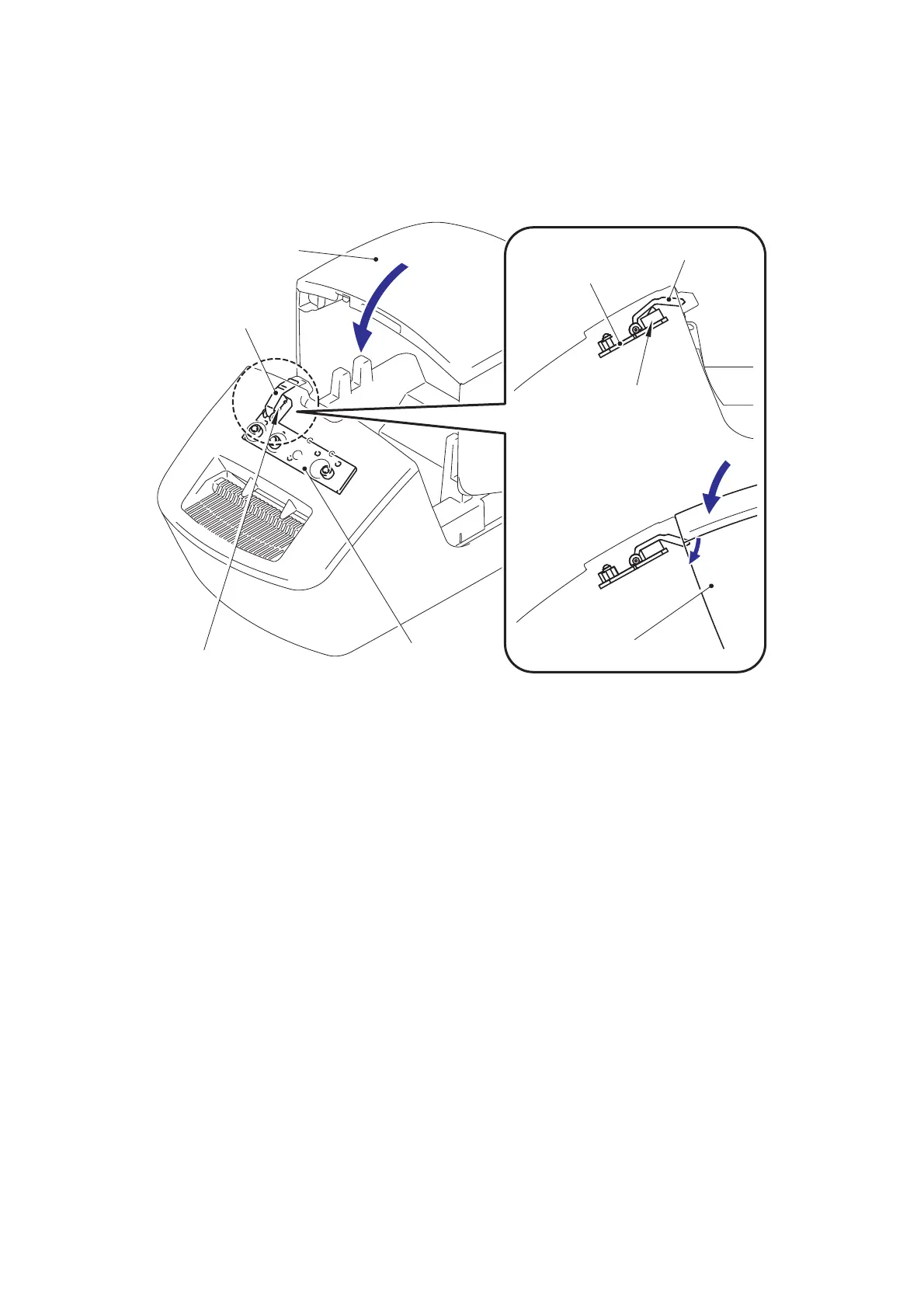

Fig. 2.1-5 Cover Open (Cover Lock) Sensor (Push Switch)
SB PCB ASSY
Cover sensor arm
Cover open
(cover lock) sensor
(push switch)
Top cover ASSY
Cover open (cover lock) sensor
(push switch)
SB PCB ASSY
Top cover ASSY
Cover sensor arm

Brother P-touch QL-710W Specifications

General

Maximum Label Width	62 mm
Resolution	300 dpi
Cutter	Automatic
Device Category	Label Maker
Power Source	AC adapter
Printing Technology	Thermal
Connectivity	USB, Wi-Fi
Media Type	Die-cut labels, Continuous labels
Supported OS	Windows, Mac
