III - 14
[4] Removing the PCB WYSAGBUX7-1 05
(1) Disconnect the WLAN harness ASSY (CN9) from the main PCB ASSY.
(2) Remove the WIFI cover A, the PCB WYSAGBUX7-1 05 and the WIFI cover B
from the under cover.
(3) Disconnect the WLAN harness ASSY from the PCB WYSAGBUX7-1 05.

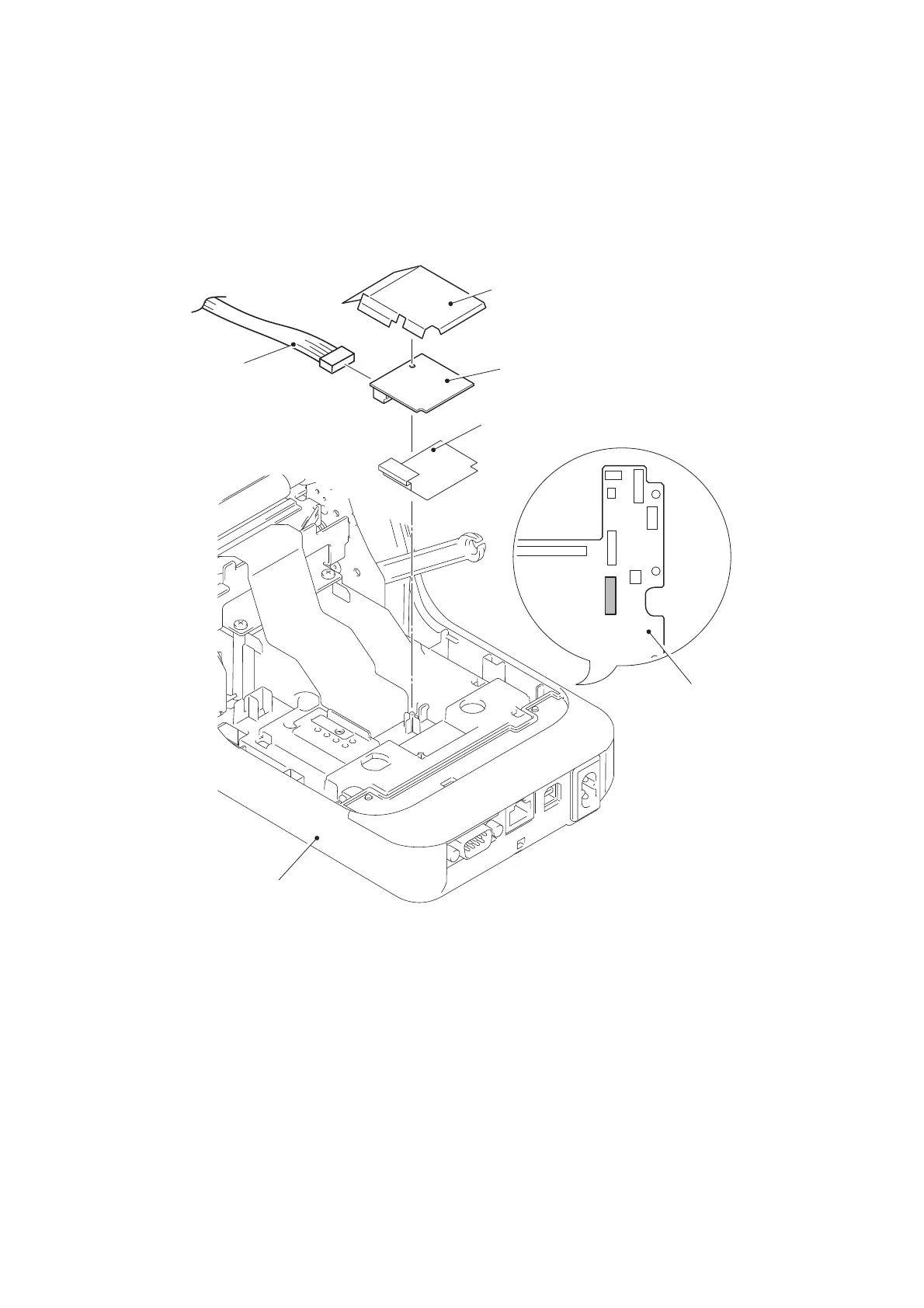

Fig. 3.4-16 Removing the PCB WYSAGBUX7-1 05
CN9
PCB WYSAGBUX7-1 05
WLAN harness ASSY
Main PCB ASSY
Under cover
<Bottom side view>
WIFI cover A
WIFI cover B
