Brother P-touch QL-710W - Detailed Disassembly Procedure

III - 5
3.4 DISASSEMBLY PROCEDURE
[1] Removing the Thermal Tape and the Top Cover ASSY
NOTE: Turn on the ON/OFF button with the top cover ASSY closed, and initialize the
machine before disassembly.
(1) Turn off the ON/OFF button and disconnect the AC cord.

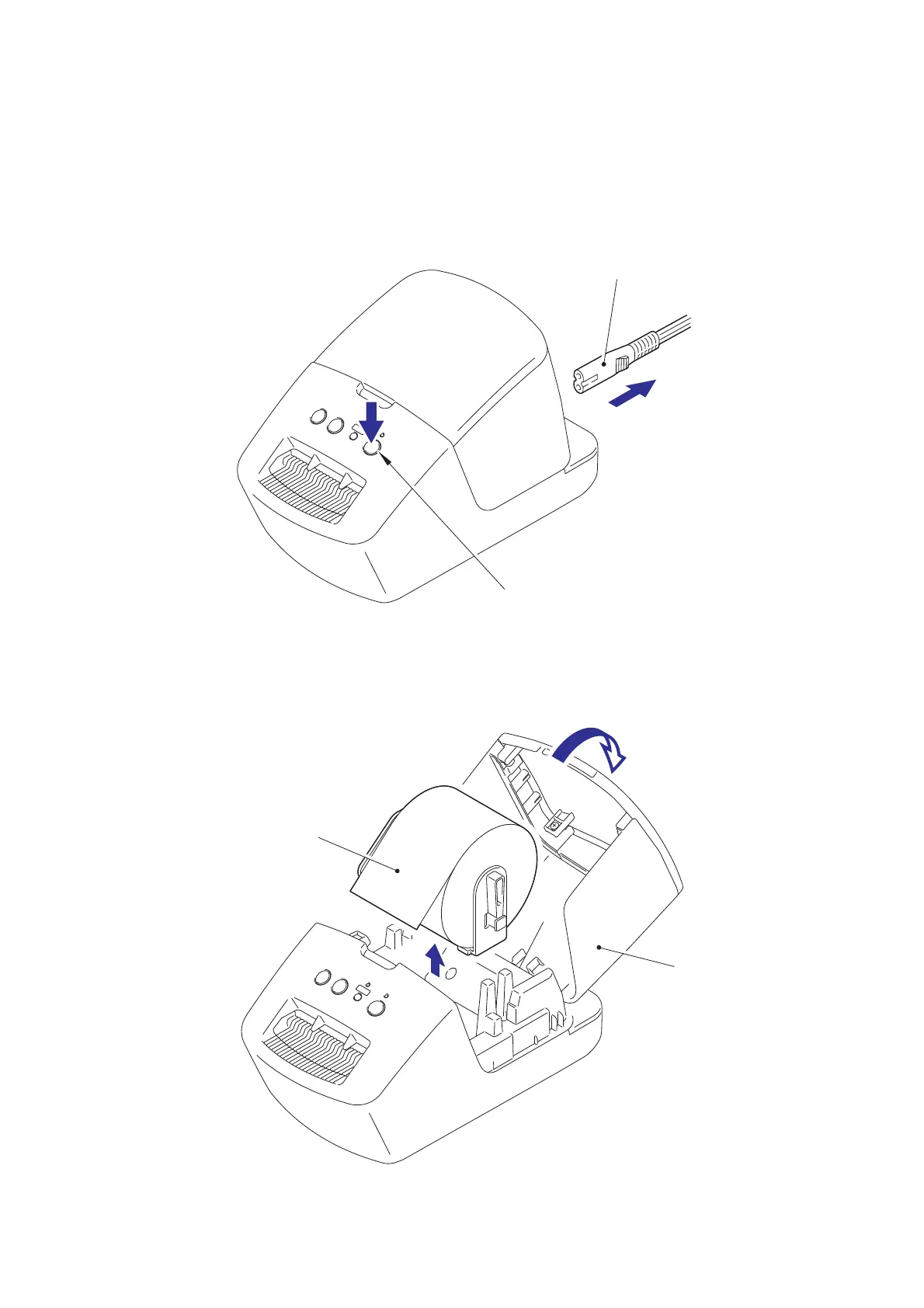

Fig. 3.4-1 Removing the Thermal Tape and the Top Cover ASSY (1)
(2) Open the top cover ASSY.
(3) Remove the thermal tape from the machine.
Fig. 3.4-2 Removing the Thermal Tape and the Top Cover ASSY (2)
AC cord
ON/OFF button
1b
1a
Top cover ASSY
2
3
Thermal tape
