III - 6
(4) Push the two ribs of the upper cover inward, and remove the two bosses of the
top cover ASSY.

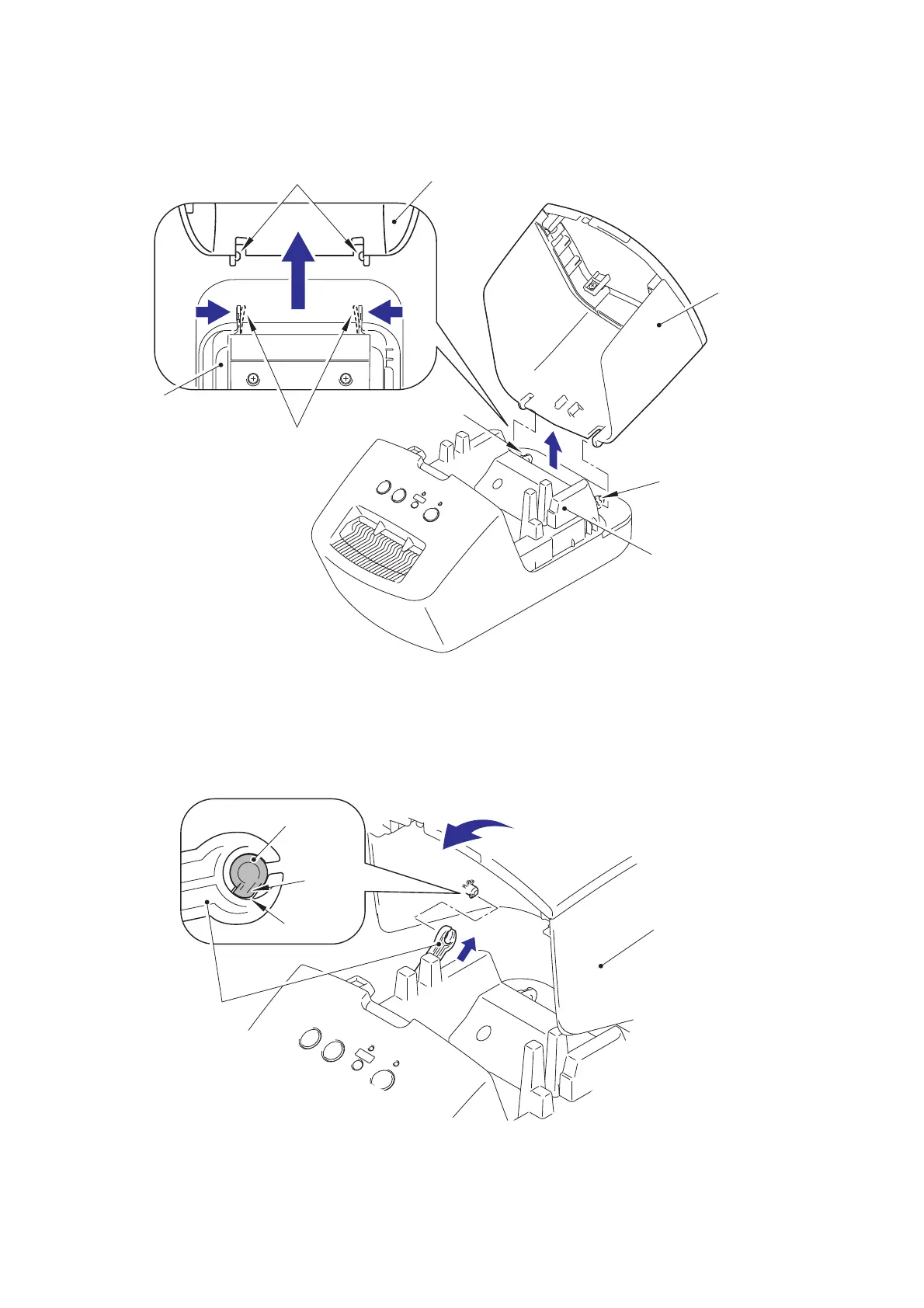

Fig. 3.4-3 Removing the Thermal Tape and the Top Cover ASSY (3)
(5) Turn the top cover ASSY while pulling the link lever, and align the tab of the boss
with the groove of the link lever, and then remove the link lever from the top cover
ASSY.
Fig. 3.4-4 Removing the Thermal Tape and the Top Cover ASSY (4)
4a
4b
Rib
4a
Rib
4b
Top cover ASSY
Upper cover
Top cover ASSY
Upper cover
Bosses
Ribs
Top cover ASSY
Link lever
Groove
Tab
Boss
5b
5a

Brother P-touch QL-710W Specifications

General

Maximum Label Width	62 mm
Resolution	300 dpi
Cutter	Automatic
Device Category	Label Maker
Power Source	AC adapter
Printing Technology	Thermal
Connectivity	USB, Wi-Fi
Media Type	Die-cut labels, Continuous labels
Supported OS	Windows, Mac
