Brother P-touch QL-710W - Reassembling the Panel Cover

III - 35
[3] Reassembling the Panel Cover
(1) Set the shaft unit of the cover sensor arm onto the section “A” of the panel cover.

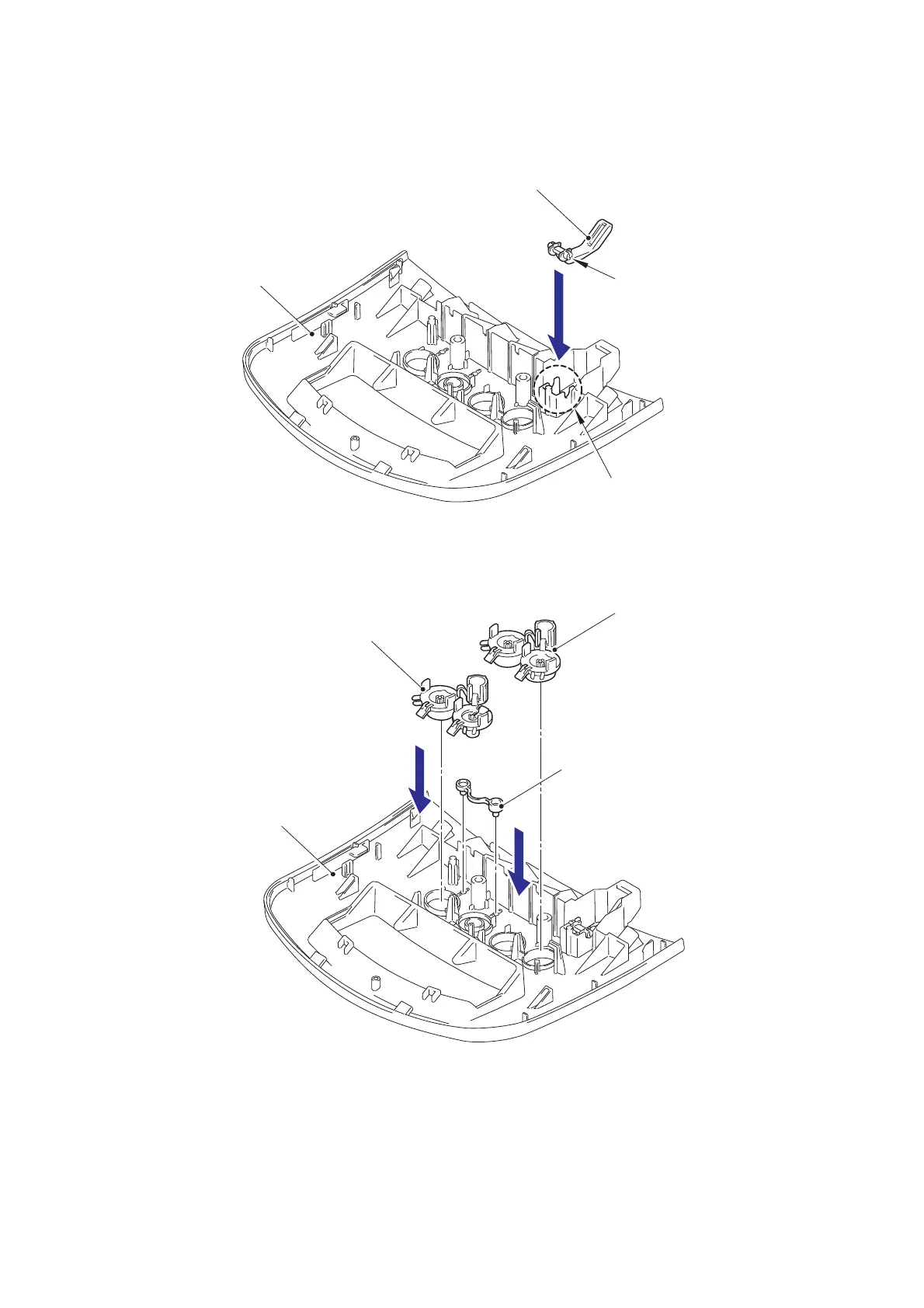

Fig. 3.5-10 Reassembling the Panel Cover (1)
(2) Set the LED guide, the feed button and the power button onto the panel cover.
Fig. 3.5-11 Reassembling the Panel Cover (2)
Panel cover
Cover sensor arm
Shaft unit
Section “A”
Panel cover
LED guide
Feed button
Power button
