III - 42
[7] Installing the Main PCB ASSY and the Power Supply ASSY
(1) Assemble the main PCB ASSY and the shield plate ASSY, and set them onto the
under cover.
(2) Set the ground spring plate and the FG harness ASSY onto the main PCB ASSY,
and then secure them with the three screws.

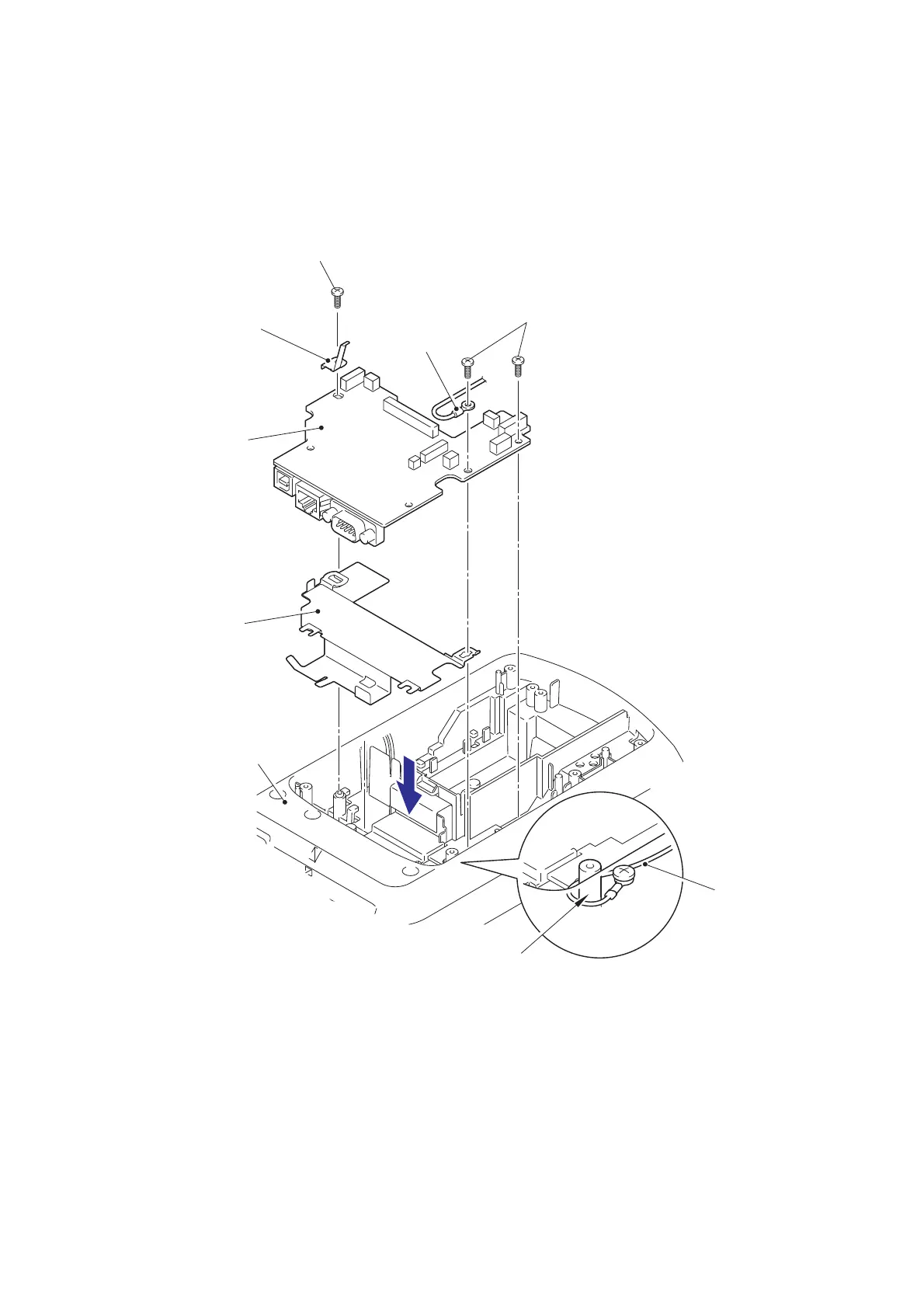

Fig. 3.5-20 Installing the Main PCB ASSY and the Power Supply ASSY (1)
Screws
FG harness
ASSY
Screw
Ground spring plate
Main PCB ASSY
FG harness
ASSY
Boss
Under cover
Shield plate ASSY
