III - 19
[7] Removing the Sub ASSY Inlet
(1) Unsolder the solder of the sub ASSY inlet harness from the power supply ASSY.

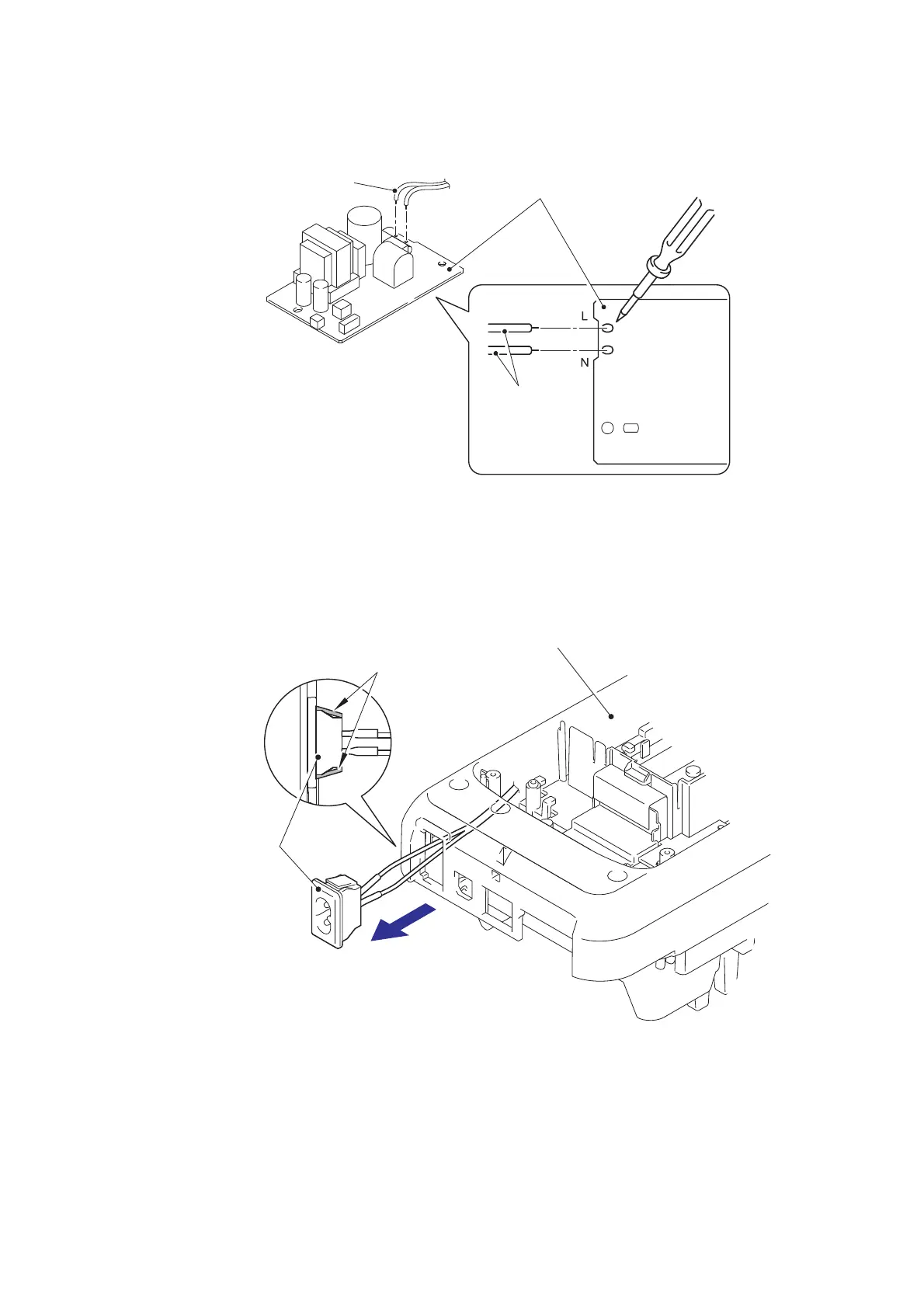

Fig. 3.4-23 Removing the Sub ASSY Inlet (1)
(2) Release the hooks on both sides of the sub ASSY inlet and pull the inlet to the
direction of the arrow as shown in the figure below to remove it from the under
cover.
Fig. 3.4-24 Removing the Sub ASSY Inlet (2)
Sub ASSY inlet harness
Sub ASSY
inlet harness
Power supply ASSY
<Bottom side view>
Sub ASSY inlet
Under cover
Hooks
