(6) Remove the three screws, and then remove the ground spring plate, the FG
harness ASSY from the main PCB ASSY.
(7) Remove the main PCB ASSY and the shield plate ASSY from the under cover in
the direction of the arrow while the “A” of the under cover is bending.

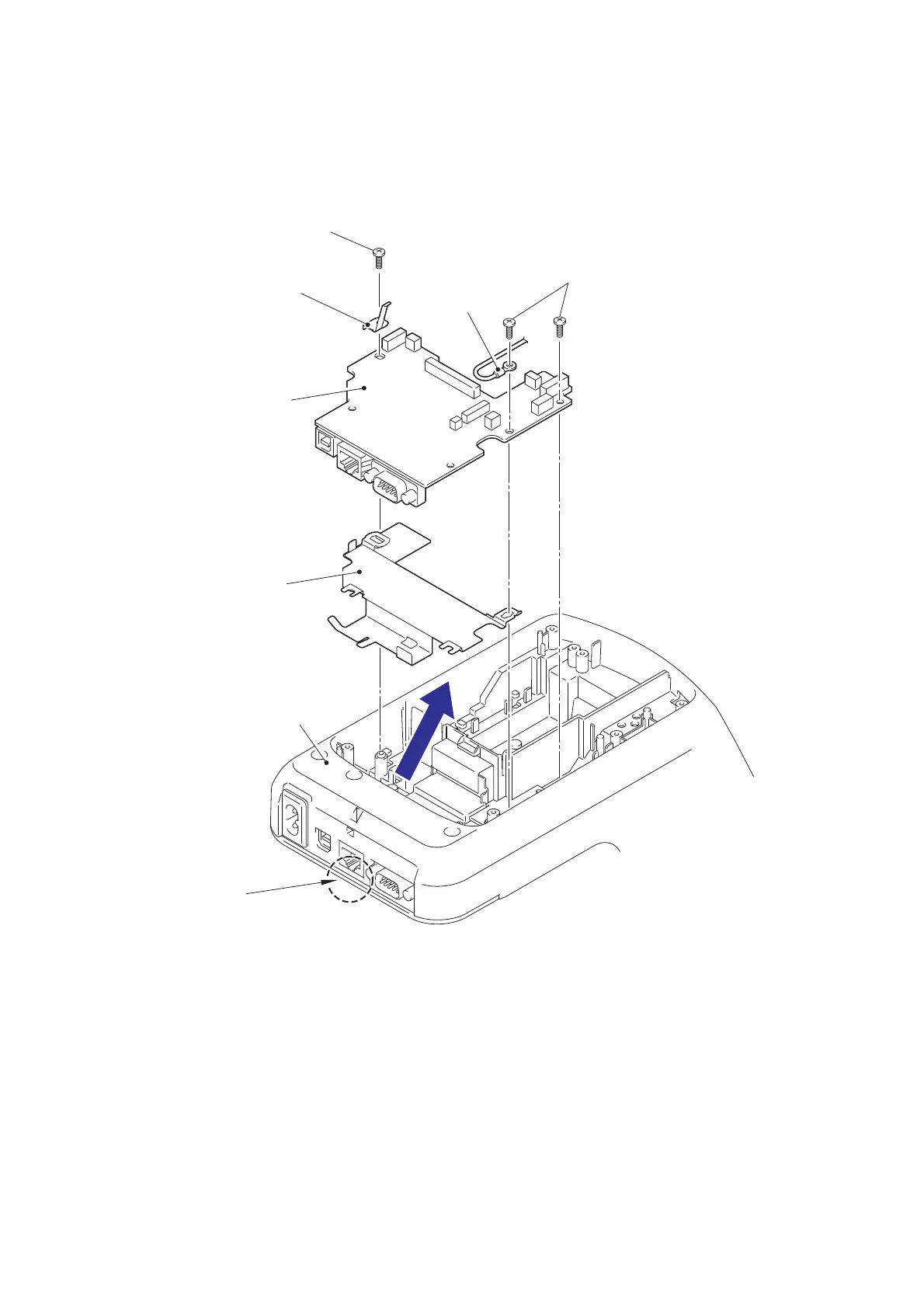

Fig. 3.4-22 Removing the Power Supply ASSY and the Main PCB ASSY (5)
Screws
FG harness
ASSY
Screw
Ground spring plate
Main PCB ASSY
Under cover
Shield plate ASSY
“A”

Brother P-touch QL-710W Specifications

General

Maximum Label Width	62 mm
Resolution	300 dpi
Cutter	Automatic
Device Category	Label Maker
Power Source	AC adapter
Printing Technology	Thermal
Connectivity	USB, Wi-Fi
Media Type	Die-cut labels, Continuous labels
Supported OS	Windows, Mac
