(4) Disconnect the power8 harness ASSY from the power supply ASSY.

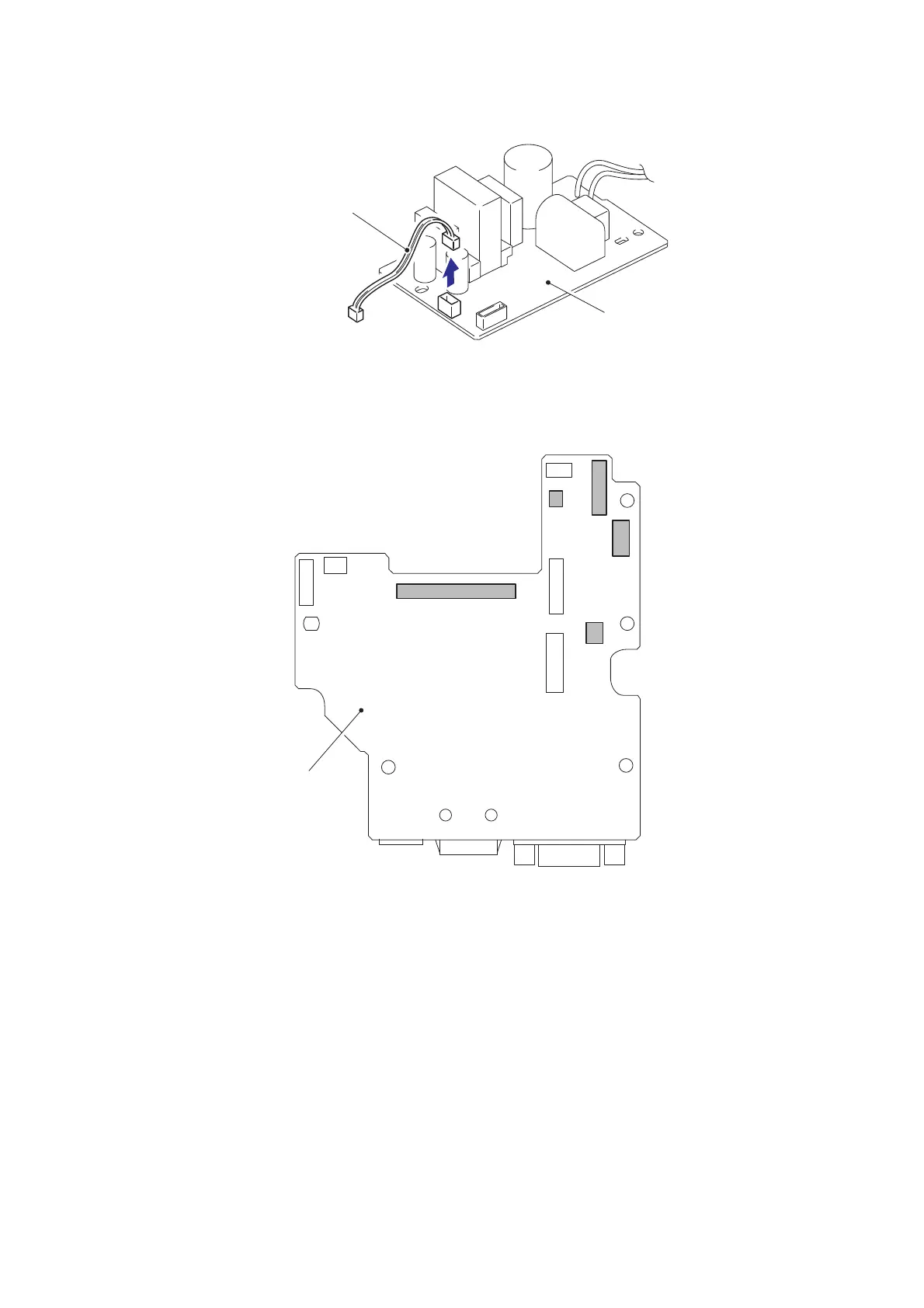

Fig. 3.4-20 Removing the Power Supply ASSY and the Main PCB ASSY (3)
(5) Disconnect the four connectors (CN5, CN6, CN7, CN10) and flat cable (CN8)
from the main PCB ASSY.
Fig. 3.4-21 Removing the Power Supply ASSY and the Main PCB ASSY (4)
Power supply ASSY
Power8 harness ASSY
CN10
CN8
CN3
CN9
CN6
CN1
CN7
CN5
CN4
CN2
Main PCB ASSY
