1.13 Adjustment print test(Continuous)
In this inspection, Serviceman Software Tool adjusts the top margin for the free length tape.
Start the inspection in the state of setting the free length tape (62mm) which used in the cut test.
(1) Check that the inspection item on the main screen is highlighted in yellow, then click
the [Run] button.

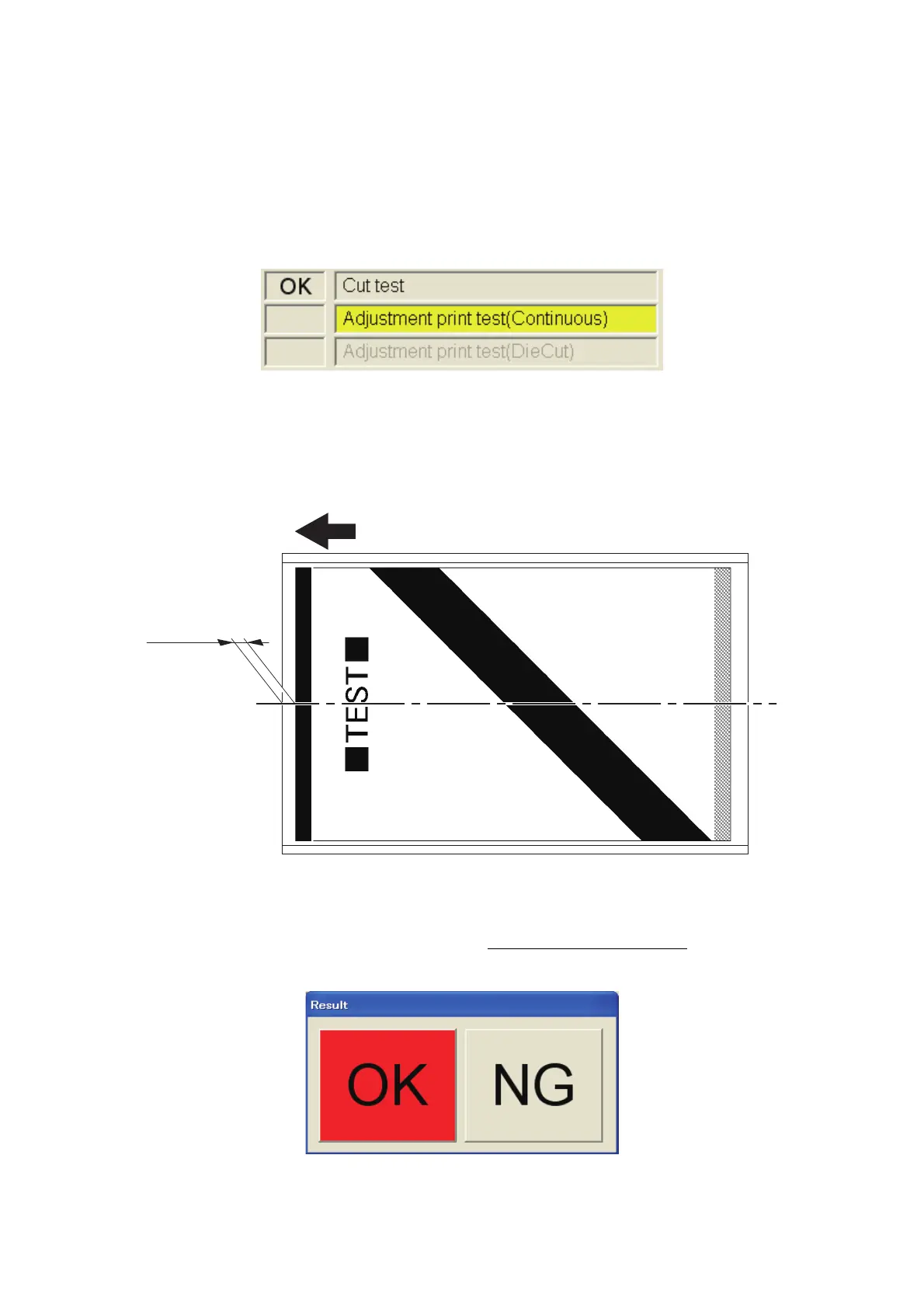

Fig. 44 “Adjustment print test(Continuous)” start-up
(2) If the adjustment of the margin is started, the “Adjust print” screen is displayed and the
test pattern is printed.
NOTE: Click the [NG] button to stop the printing on the way.
Fig. 45 Continuous print pattern (62mm)
(3) If the test pattern is printed, the OK/NG dialogue is displayed.
Measure whether the top margin is the specified value “3±1.0mm”
.
NOTE: The cutting is performed automatically after printing.
Fig. 46 OK/NG dialogue
Printing direction
3±1.0mm
