Brother P-touch QL-710W User Manual

II - 2
2.1.2 Press Contact and Release Mechanism of Thermal Head
The head ASSY is pressed firmly against on the platen ASSY by the force of head
spring L. When open the top cover ASSY, the release gear and release shaft are
turned via link lever and platen release lever and the release shaft presses down the
head ASSY. This movement releases the head ASSY from the platen ASSY. Tape can
be set under this condition.
By closing the top cover ASSY, the head ASSY is automatically pressed against the
platen ASSY.

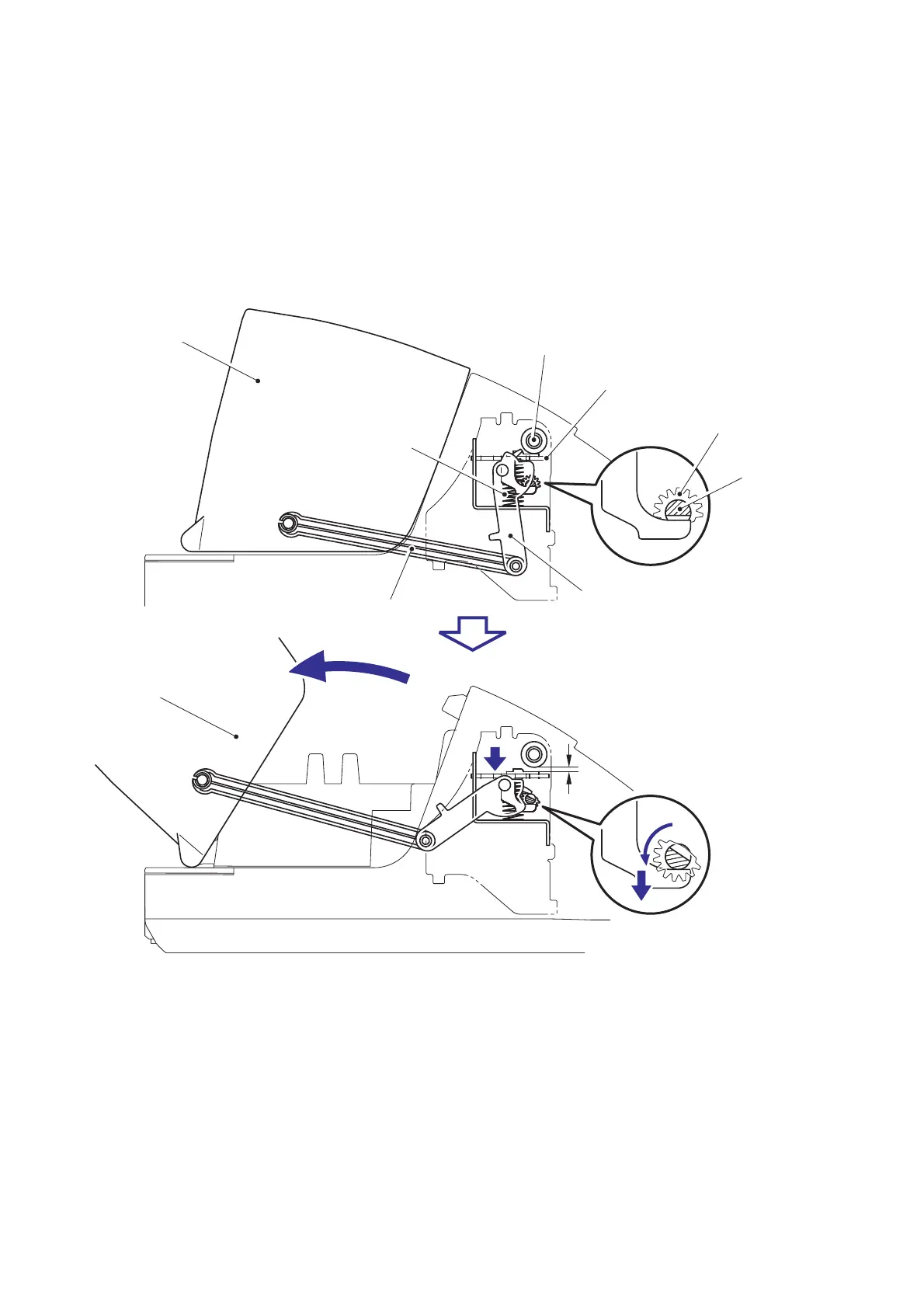

Fig. 2.1-2 Press Contact and Release Mechanism of Thermal Head
Platen release
lever
Head spring L
Platen ASSY
Release gear
Link lever
Top cover ASSY
Head ASSY
Top cover ASSY
Release shaft

Brother P-touch QL-710W Specifications

General

Maximum Label Width	62 mm
Resolution	300 dpi
Cutter	Automatic
Device Category	Label Maker
Power Source	AC adapter
Printing Technology	Thermal
Connectivity	USB, Wi-Fi
Media Type	Die-cut labels, Continuous labels
Supported OS	Windows, Mac
