III - 22
[10] Removing the Cutter Unit ASSY
(1) Remove the two screws, and then remove the cutter unit ASSY from the mecha
ASSY.

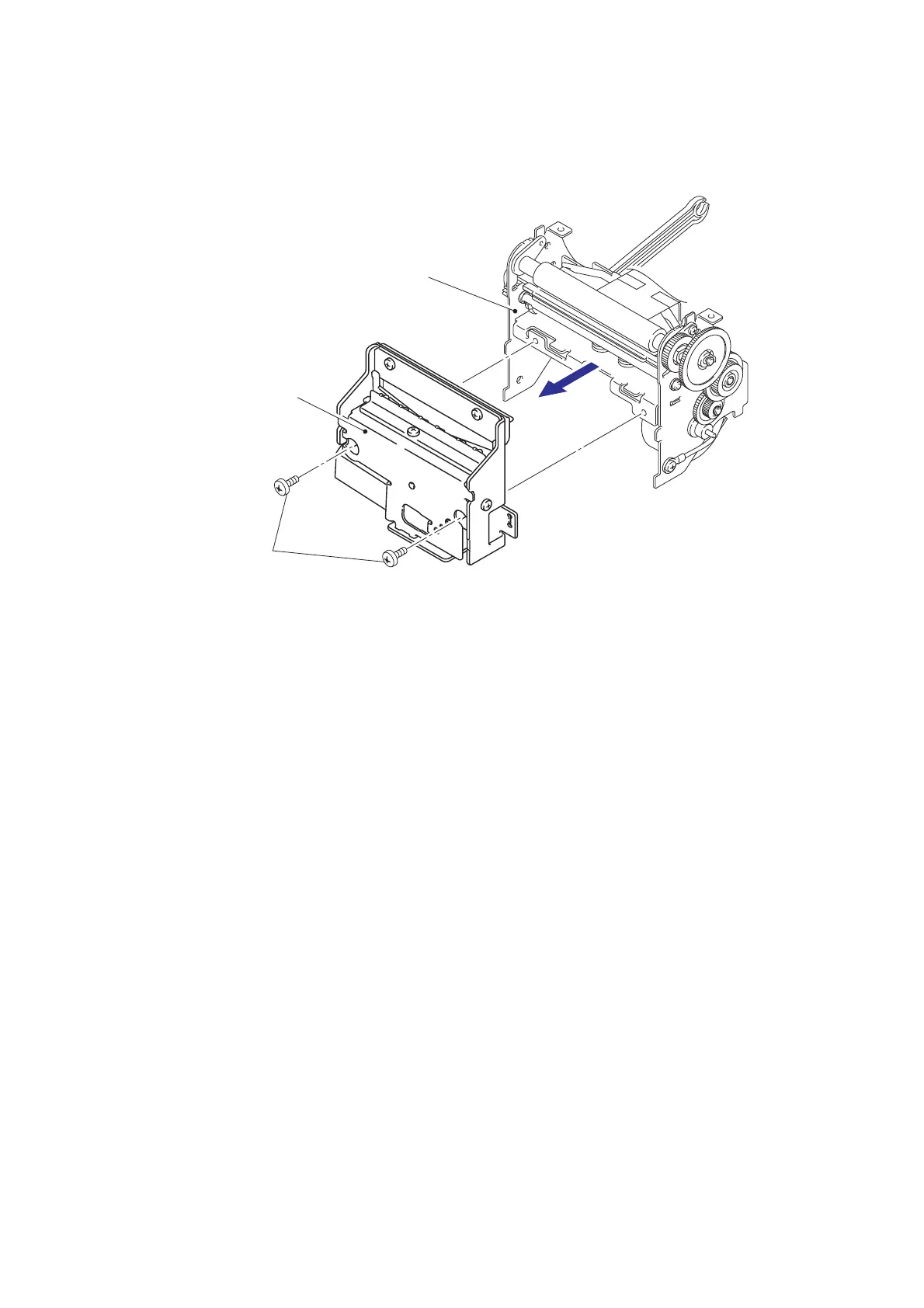

Fig. 3.4-27 Removing the Cutter Unit ASSY
Screws
Cutter unit ASSY
Mecha ASSY
