1.12 Cut test
Check that the tape is fed and cut correctly.
Set the free length tape (62mm) into the machine and close the top cover ASSY, and
then start the inspection.
(1) Check that the inspection item on the main screen is highlighted in yellow, then
click the [Run] button.
NOTE: When the machine is entered in the inspection state, the Status LED
does not change even if open and close the top cover ASSY.

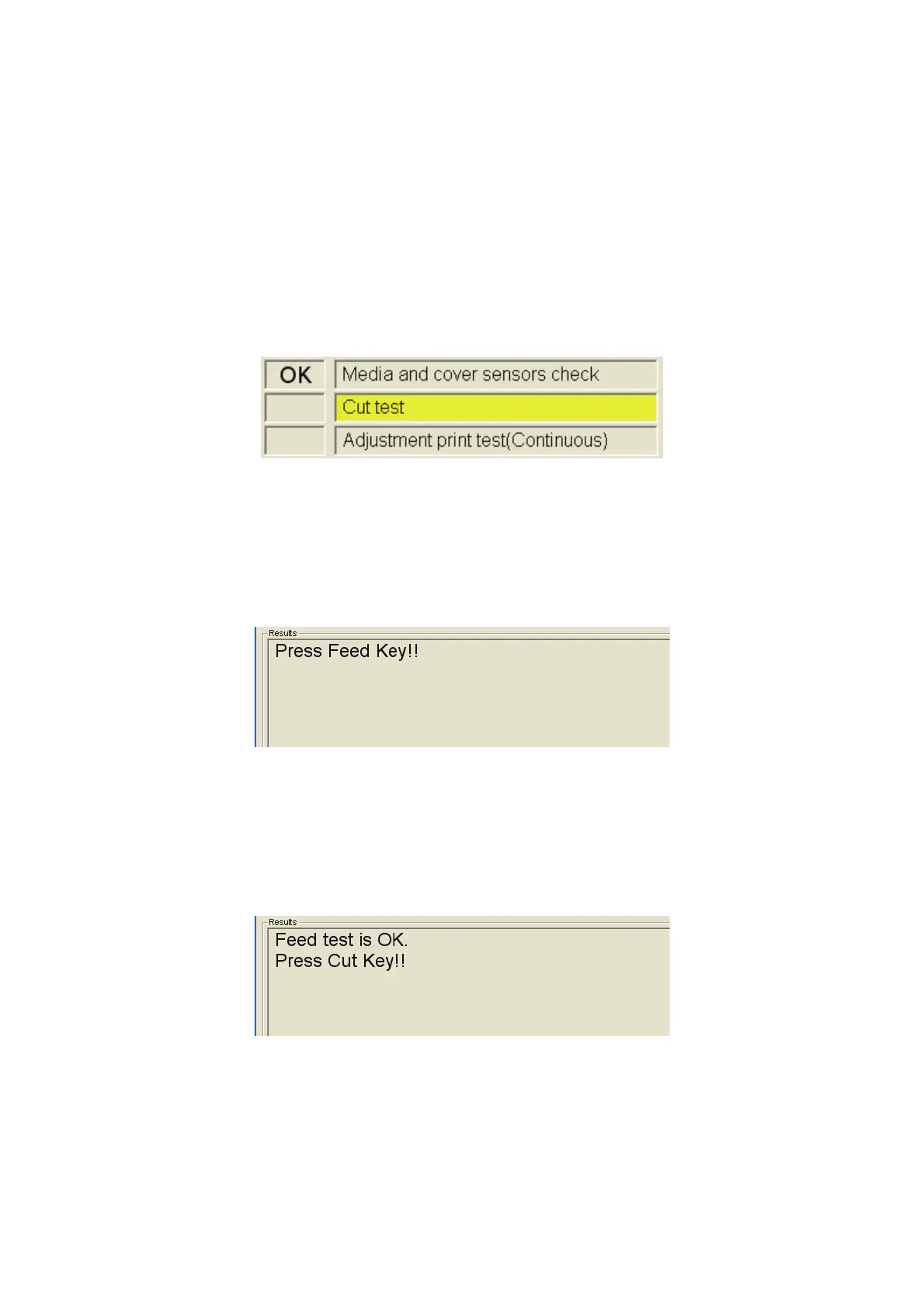

Fig. 41 “Cut test” start-up
(2) If the “Press Feed Key!!” is displayed on the “Results” field in the main screen,
check that the free length tape (62mm) is set into the machine. And then press
the [Feed] button on the machine.
NOTE: Click the [Stop] button when stopping.
Fig. 42 Checking “Feed”
(3) If the feeding of the machine is performed correctly and the “Press Cut Key!!” is
displayed on the “Results” field in the main screen, press the [Cut] button on the
machine.
NOTE: Click the [Stop] button when stopping.
Fig. 43 Checking “Cut”
(4) This inspection is completed if the cutting of the machine is performed correctly.
