III - 41
(4) Route the harness of the sub ASSY inlet and the harness of the media PCB
ASSY as shown in the figure below.

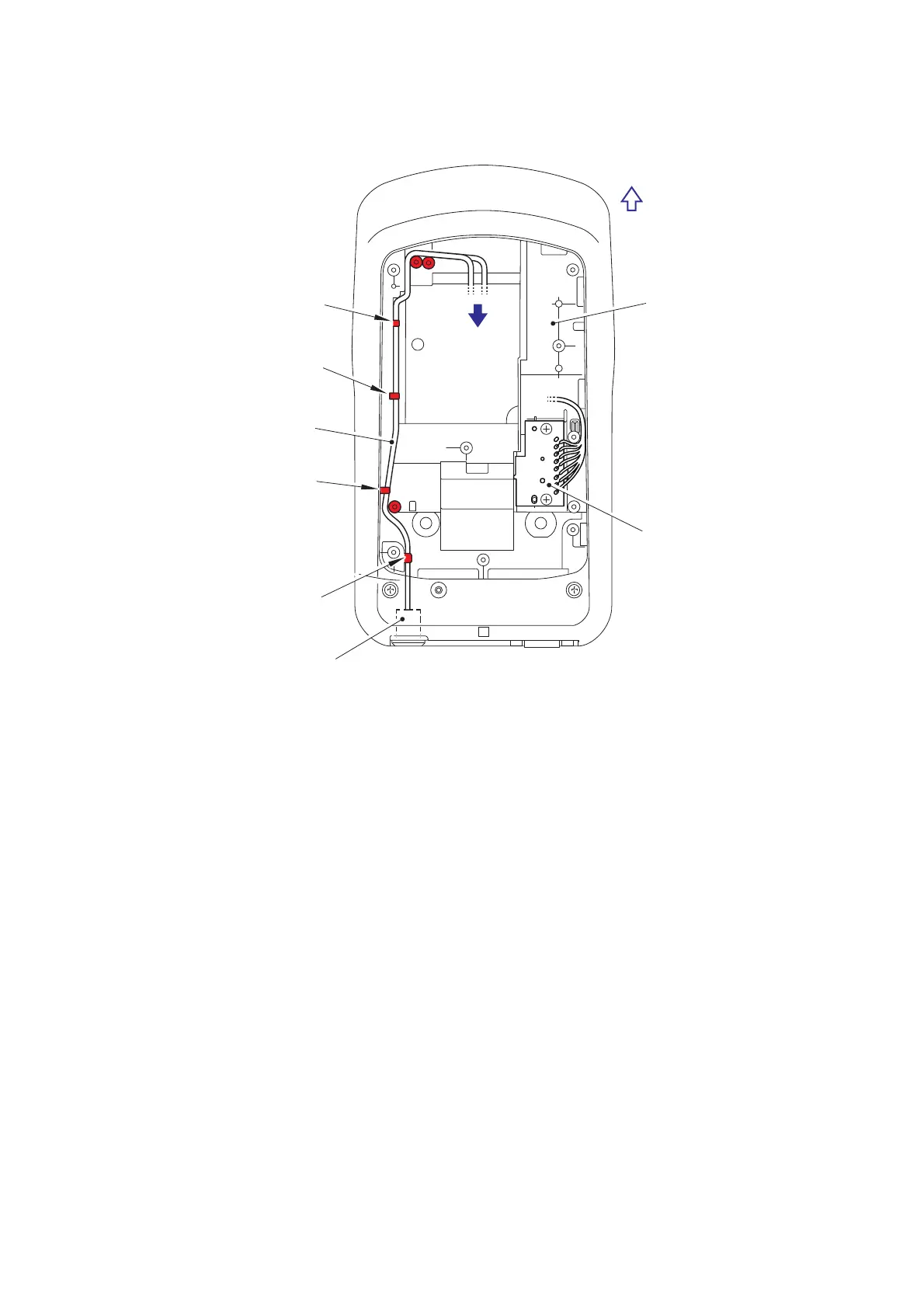

Fig. 3.5-19 Reassembling the Sub ASSY Inlet (3)
Hook
Under cover
Front
Hook
Hook
Hook
Sub ASSY inlet
To power
supply ASSY
Media PCB ASSY
Harness of
the sub ASSY inlet
