III - 13
(6) Remove the tape sensor PCB ASSY from the insert guide.

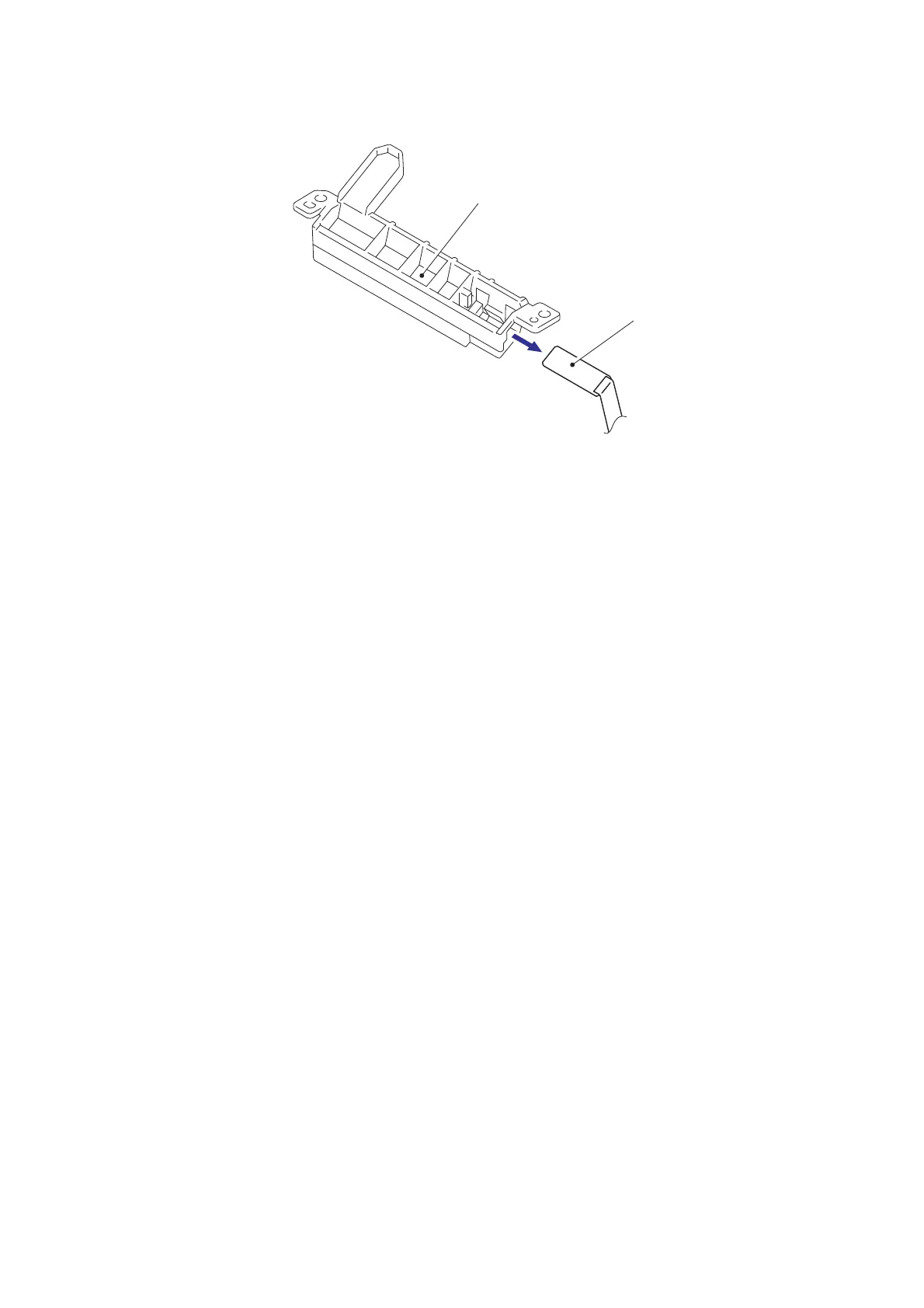

Fig. 3.4-15 Disassembling the Upper Cover and the Under Cover (4)
Tape sensor PCB ASSY
Insert guide
