III - 24
(3) Remove the screw, and then remove the platen shaft bushing (right side).

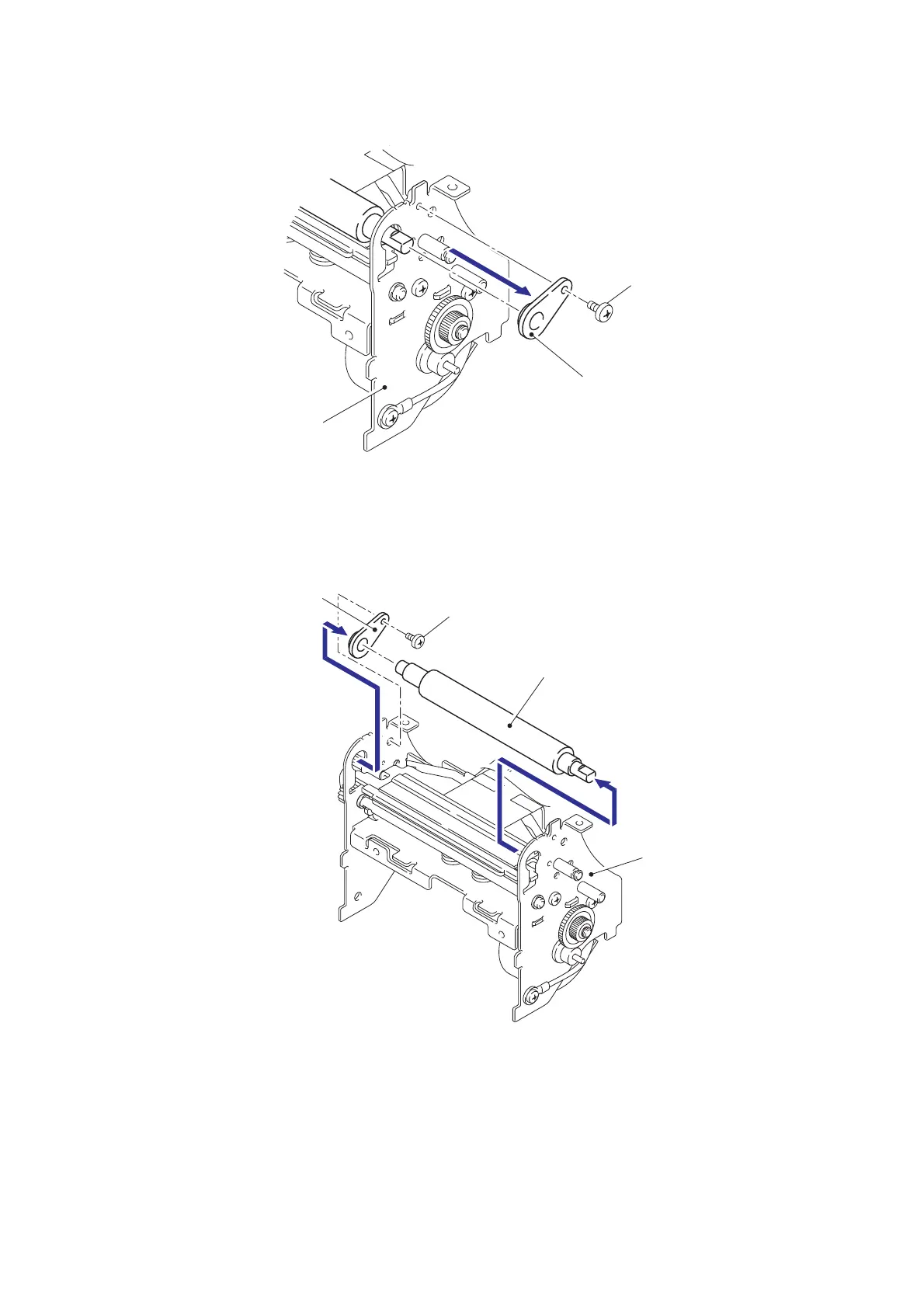

Fig. 3.4-30 Disassembling the Mecha ASSY (3)
(4) Remove the platen ASSY from the mecha ASSY.
(5) Remove the screw, and then remove the platen shaft bushing (left side).
Fig. 3.4-31 Disassembling the Mecha ASSY (4)
Screw
Platen shaft bushing
(Right side)
Mecha ASSY
Platen shaft bushing
(Left side)
Platen ASSY
Mecha ASSY
Screw
