III - 26
(7) Remove the head ASSY from the mecha ASSY.
CAUTION: Pay attention not to give strong impact on the heating element of a
head ASSY when removing the head ASSY.

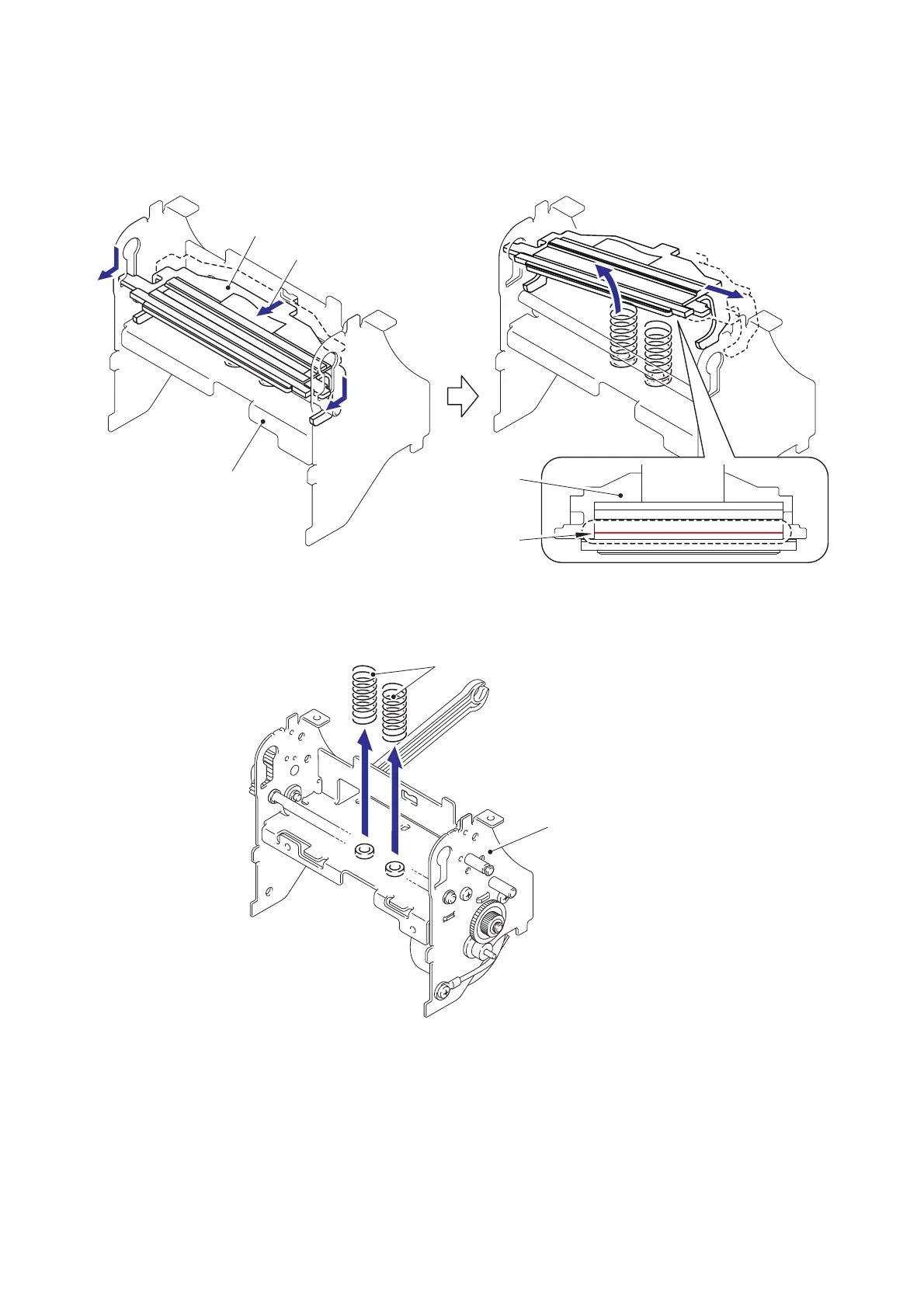

Fig. 3.4-33 Disassembling the Mecha ASSY (6)
(8) Remove the two head springs L from the mecha ASSY.
Fig. 3.4-34 Disassembling the Mecha ASSY (7)
Head ASSY
7a
Mecha ASSY
Head ASSY
Heating element
7b
7b
7c
7d
Head springs L
Mecha ASSY
