III - 27

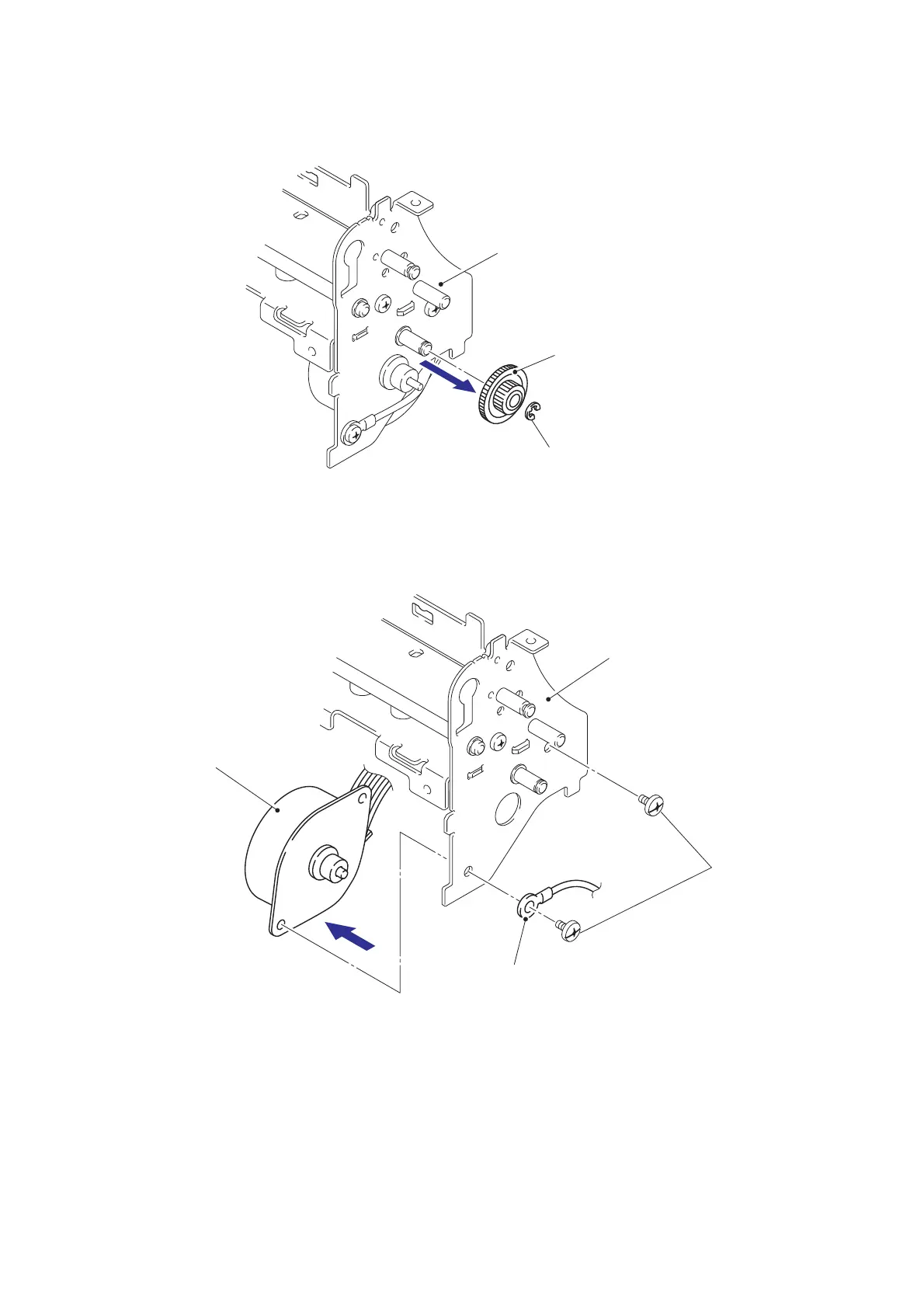

(9) Remove the retaining ring E2.5 and remove the double gear A from the mecha
ASSY.
Fig. 3.4-35 Disassembling the Mecha ASSY (8)
(10) Remove the two screws, and then remove the tape feed motor ASSY and the FG
harness ASSY from the mecha ASSY.
Fig. 3.4-36 Disassembling the Mecha ASSY (9)
Mecha ASSY
Double gear A
Retaining ring E2.5
Mecha ASSY
Screws
FG harness ASSY
Tape feed motor ASSY
