III - 38
(6) Turn the machine upside down, and then pass the harness of the mecha ASSY
through the four holes of the under cover respectively as shown in the figure
below.

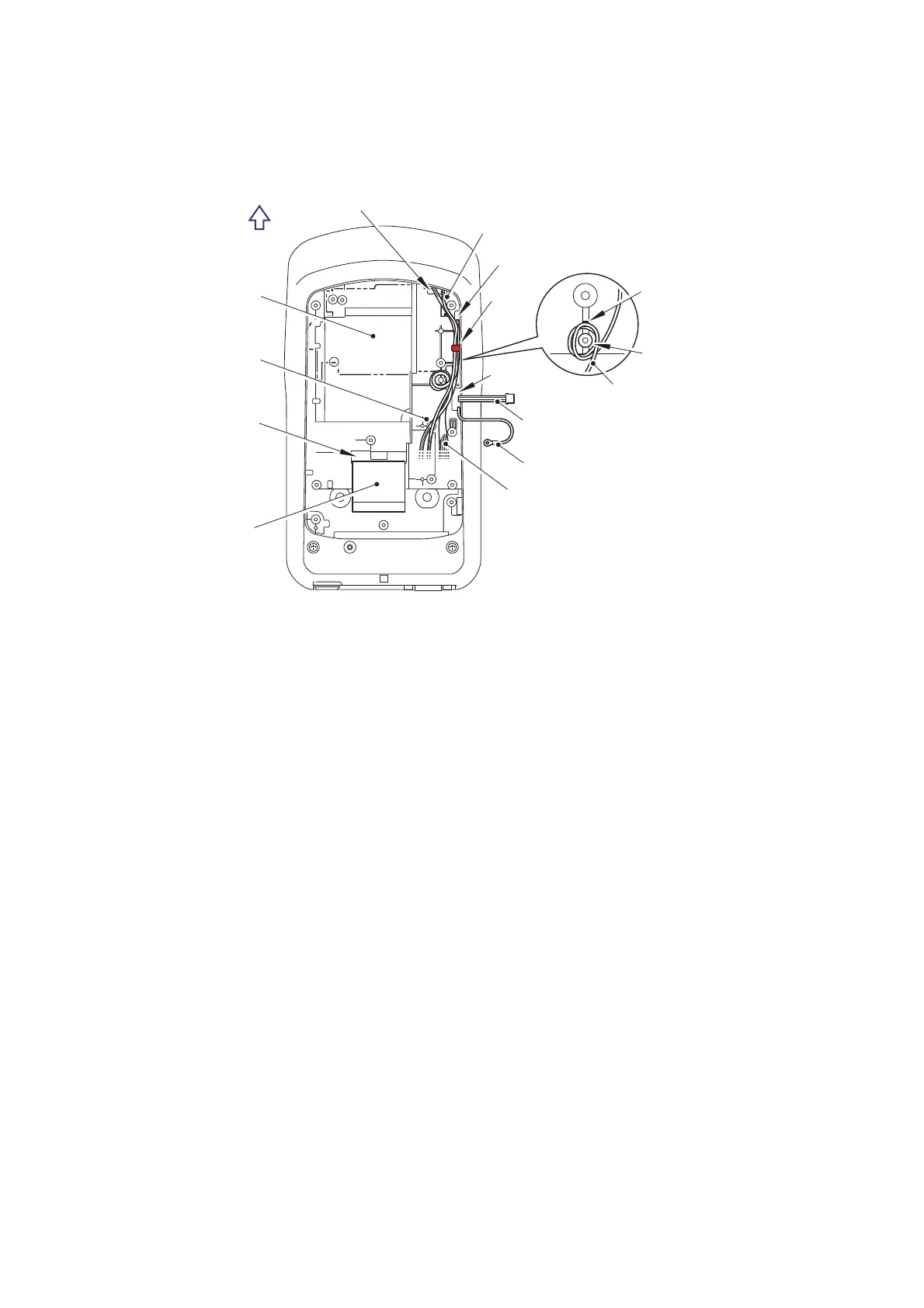

Fig. 3.5-15 Routing the Harnesses
Hook
Mecha ASSY
Hole
Hole
FG harness ASSY
Harness of the
cutter unit ASSY
Harness of the
SB PCB ASSY
Hole
Flat cable of
the head ASSY
Harness of the mecha ASSY
Harness of the
tape feed motor ASSY
Hole
Front
Boss
Harness of the
cutter unit ASSY
Slit
* Wind the harness
on the boss twice.
