III - 45

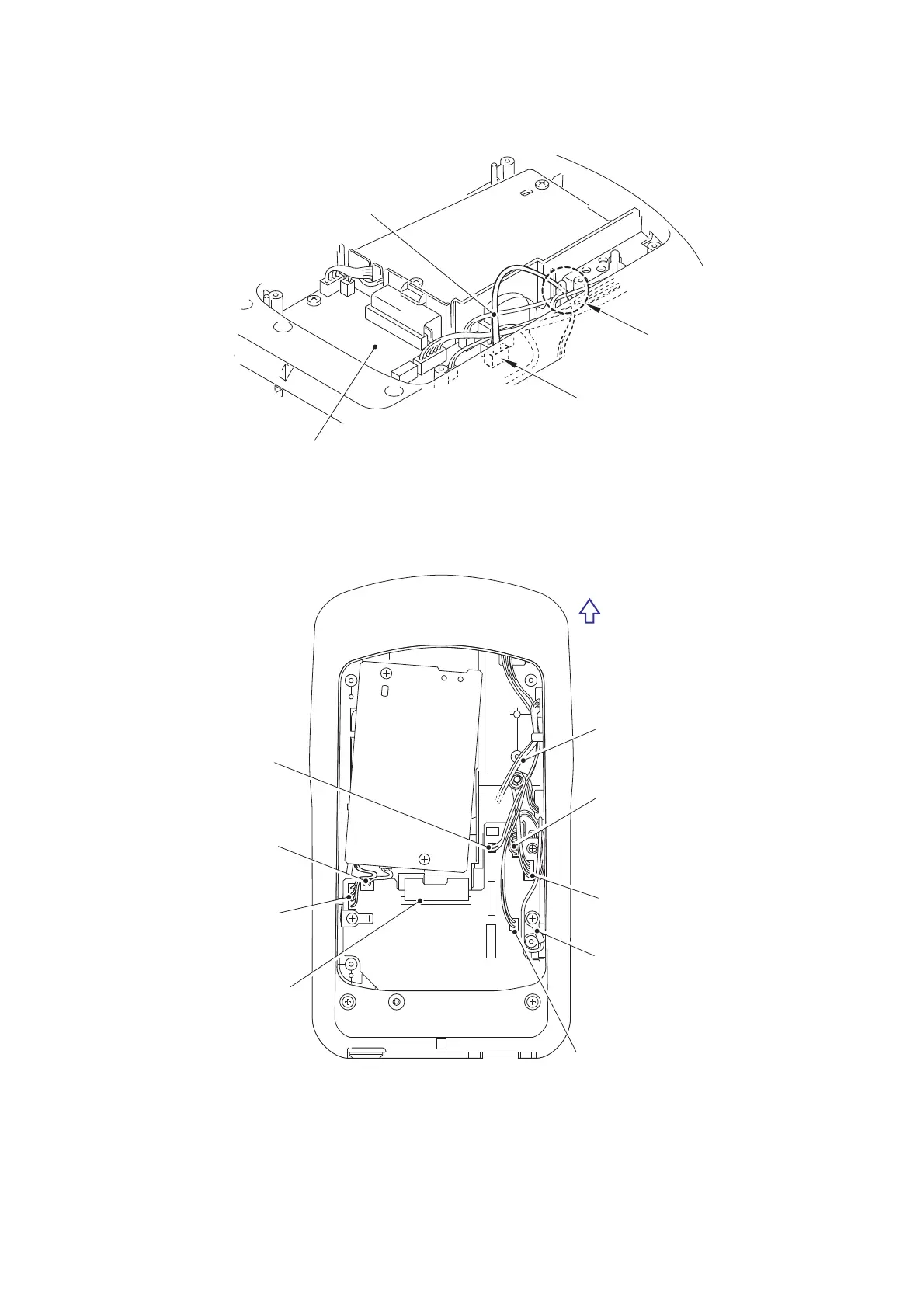

(8) Route the harnesses of the CN6 as shown in the figure.
Fig. 3.5-25 Installing the Main PCB ASSY and the Power Supply ASSY (6)
NOTE: Make sure that the harnesses and the flat cable are routed as shown in
the figure below.
Fig. 3.5-26 Routing the Harnesses and the Flat Cable
Harness of
the tape feed motor ASSY
Main PCB ASSY
CN6
Slit
Front
Harness of the media PCB ASSY
Harness of
the tape feed motor ASSY
FG harness ASSY
Cutter motor harness
Harness of the
SB PCB ASSY
Flat cable of
the head ASSY
Power8 harness ASSY
Cutter sensor harness
Main PCB harness

Brother P-touch QL-710W Specifications

General

Maximum Label Width	62 mm
Resolution	300 dpi
Cutter	Automatic
Device Category	Label Maker
Power Source	AC adapter
Printing Technology	Thermal
Connectivity	USB, Wi-Fi
Media Type	Die-cut labels, Continuous labels
Supported OS	Windows, Mac
