1 - 3

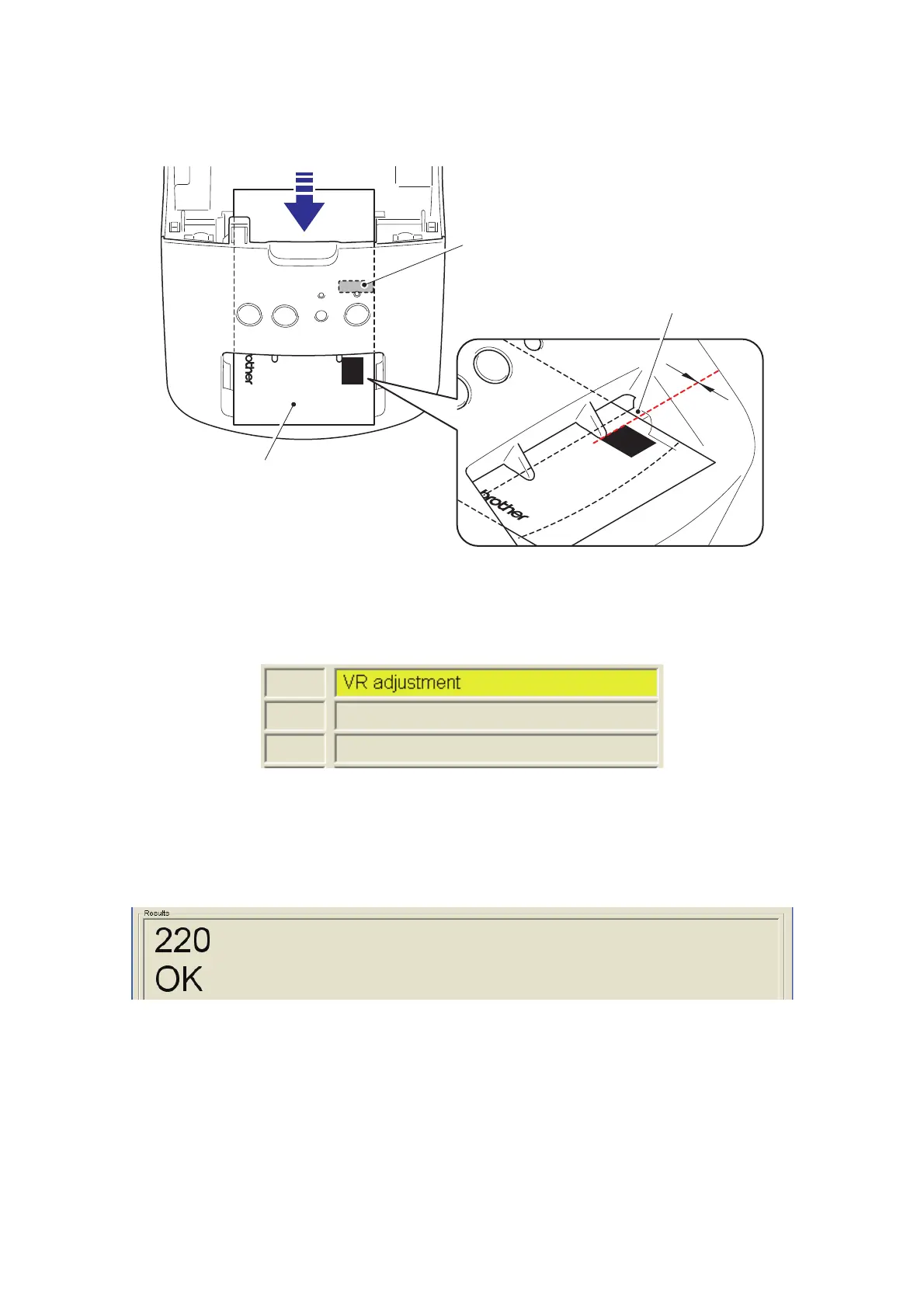

(3) Insert the release coated paper of the die-cut label (62mm x 100mm) for sensor
reference value measurement into the machine. (Peel the label.)
Fig. 2 Insert position of release coated paper
(4) Check that the background of “VR adjustment” is yellow, and click the [Run]
button.
Fig. 3 Starting of VR adjustment
(5) Check the VR value displayed in the “Results” field.
The VR value is normal when it is within the pass range (218 to 222). Check that
“OK” is displayed in the “Results” field, and quit VR adjustment.
Fig. 4 VR adjustment OK
Tape sensor PCB ASSY
Release coated paper
Upper cover
To Next Page
