Brother S-710A - 14-2. Connectors; Checking the Solenoids

14. STANDING OPERATION PEDAL
SL-710A
97

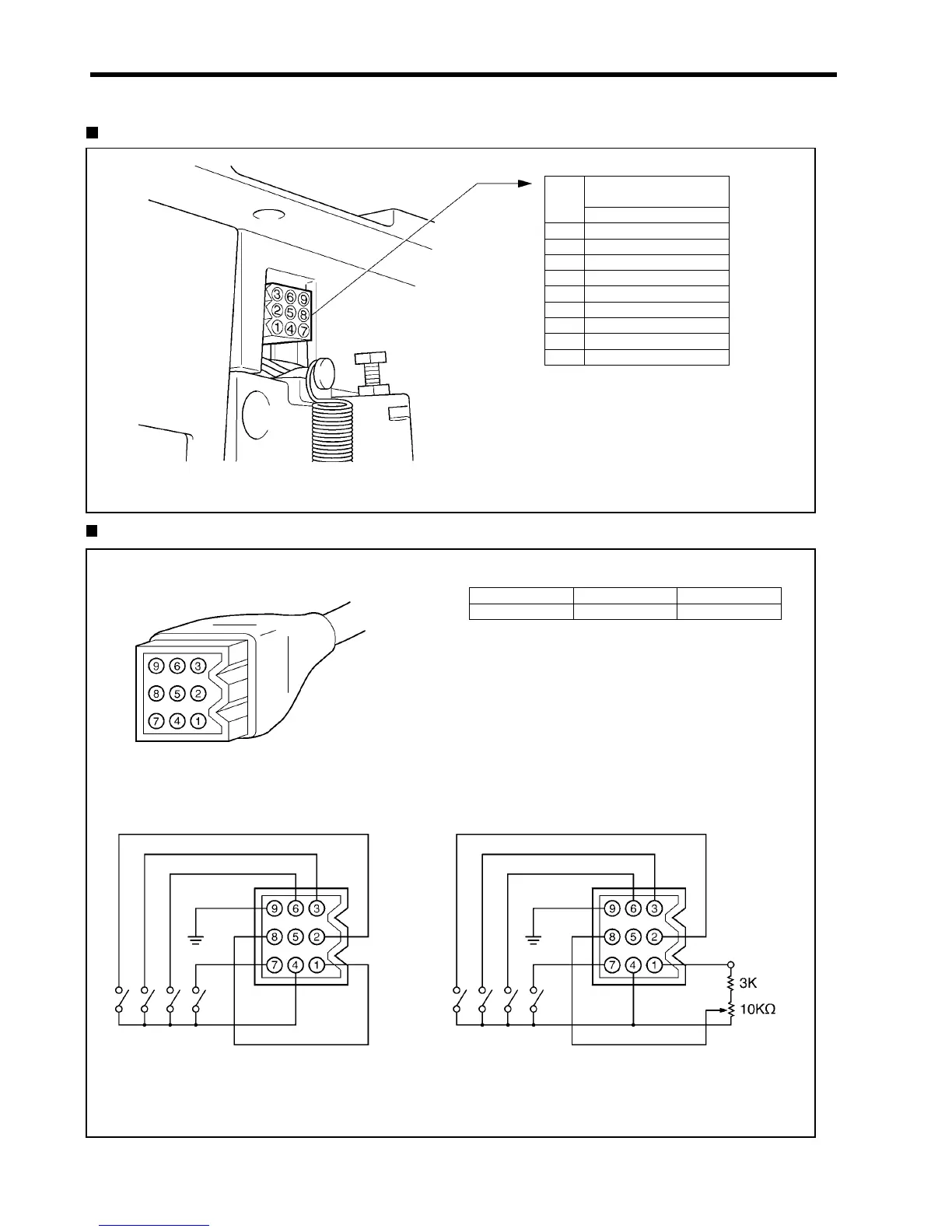

14-2. Connectors
At control box
At pedal
Standing operation
pedal
No.
9P connector
1 DC+8 V
2 High-speed switch
3 Thread trimmer switch
4SOV
5Spare
6 Low-speed switch
7 Presser foot switch
8 Variable speed input
9 Ground
1866M
<Note>
Connector types
Manufacturer Connector No.
Connector terminal
MOLEX 1292 P 1380 TL
1868M
1867M
Presser foot Low speed
Thread trimming
High speed
<A> Two-step pedal
<B> Variable speed pedal
Presser foot
Low speed
Thread trimming
High speed
