Brother S-710A - 5-24. Stitch Length Dial Disassembly; 5-25. Reverse Stitching Lever and Feed Regulator Disassembly

5. DISASSEMBLY
SL-710A
28

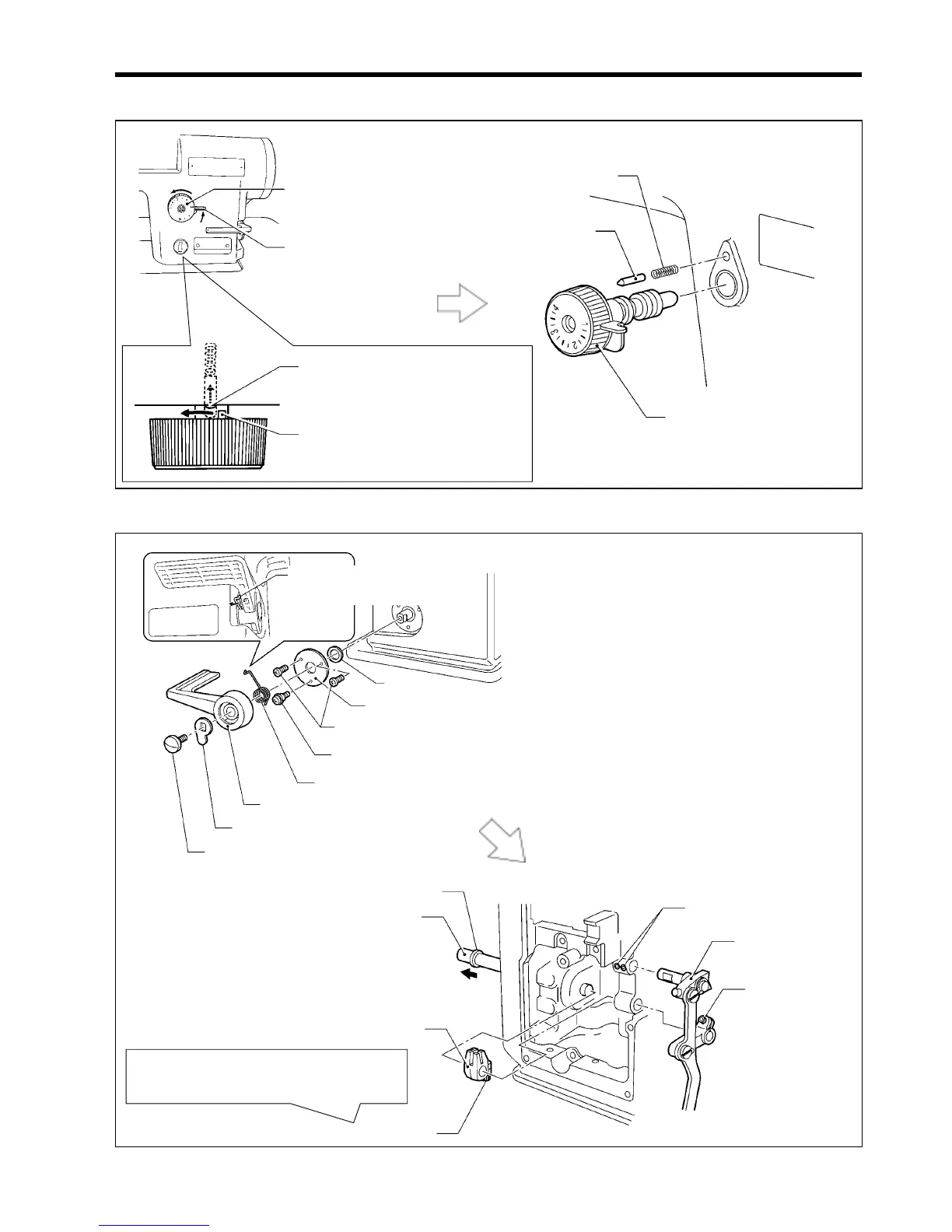

5-24. Stitch length dial
5-25. Reverse stitching lever and feed regulator
2
Stitch length dial
[Turn counterclockwise
all the way]
1
Lock lever
[Unlock: DD7100A, 710A only]
5
Stitch length dial
[Turn counterclockwise
and remove]
6
Positioning pin
7
Spring
1703M
1701M
1702M
4
Stopper
[Turn the stitch length dial counterclockwise again so that
the stopper goes past the positioning pin]
3
Positioning pin
[Push with a screwdriver or similar]
1
Spring
[Remove from groove]
7
Screw [2 pcs]
6
Screw [with washer and collar]
3
Reverse lever plate
11
Bolt [Loosen]
9
Washer
2
Screw
15
Feed regulator
14
Set screws
[
2 pcs: Loosen
]
8
Spacer
4
Reverse stitching lever
5
Spring
[With retaining ring E]
10
Bolt [Loosen]
13
Solenoid lever
12
Shaft
[Pull out]
1705M
Tilt back the machine head and loosen the
bolt from underneath the machine head.
1704M
