5. DISASSEMBLY
SL-710A
26

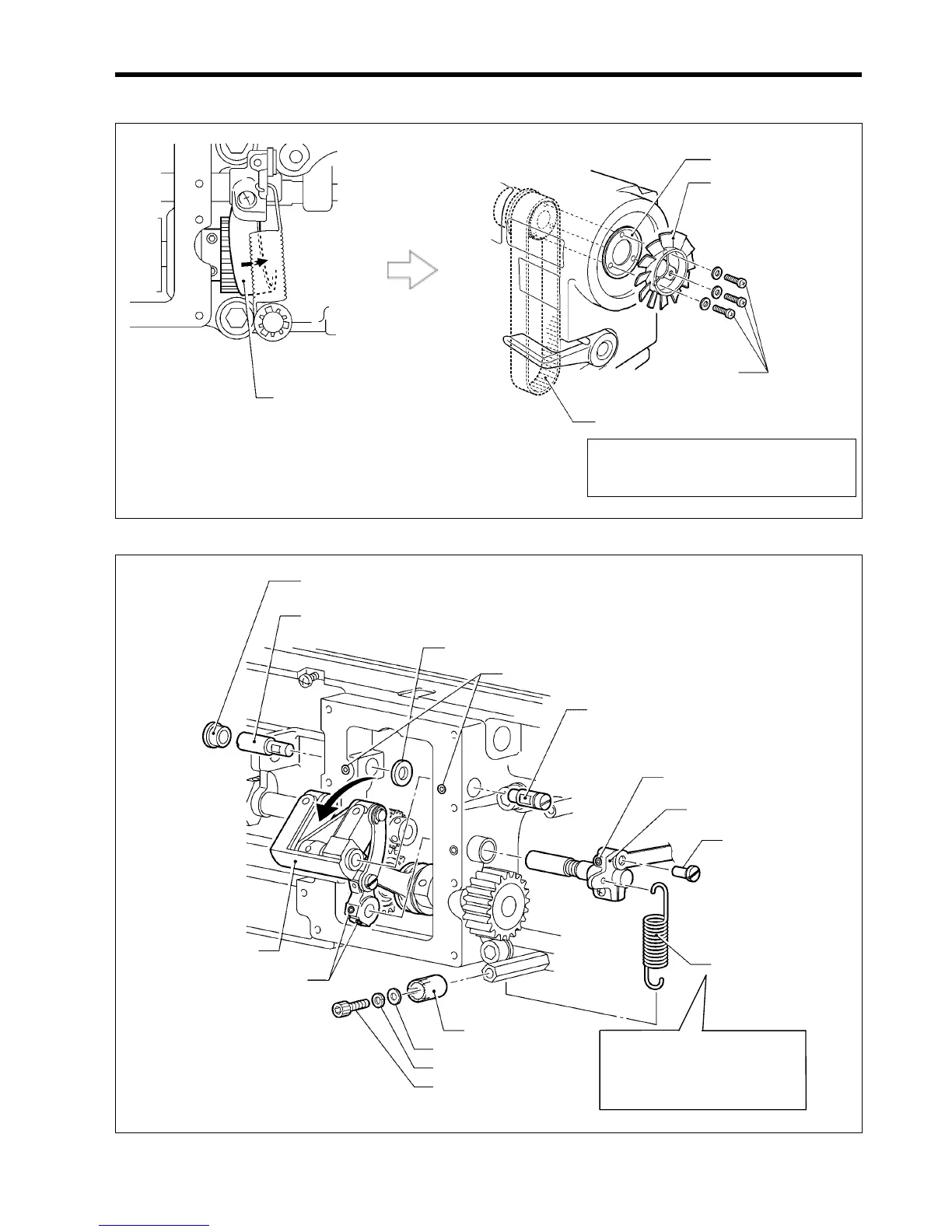

5-20. Timing belt
5-21. Spring and feed regulator
1696M
1
Timing belt
[Remove from timing pulley D]
3
Fan
[DD7100 only]
2
Screws
[3 pcs: DD7100 only]
4
Timing belt
[Remove from the arm]
1695M
Note;
For the DD7100A and 710A, the fan and
flange do not need to be removed.
4
Flange
[DD7100 only]
1697M
10
Rubber cap
13
Feed regulator shaft L
14
Washer
11
Set screws [2 pcs: Loosen]
12
Feed regulator support shaft
7
Eccentric
p
in
9
Stud arm
6
Set screw [Loosen]
5
Spring
1
Bolt
4
Cover stud
3
Washer
2
Spring washer
15
Feed regulator
[Only the top can be removed]
8
Set screws
[2 pcs: Loosen]
Note;
After removing the spring,
reinstall the cover stud if
working on a flat surface.
