Brother S-710A - 7-4. Adjusting of the Feed Dog Height

7. ADJUSTMENTS
SL-710A
65

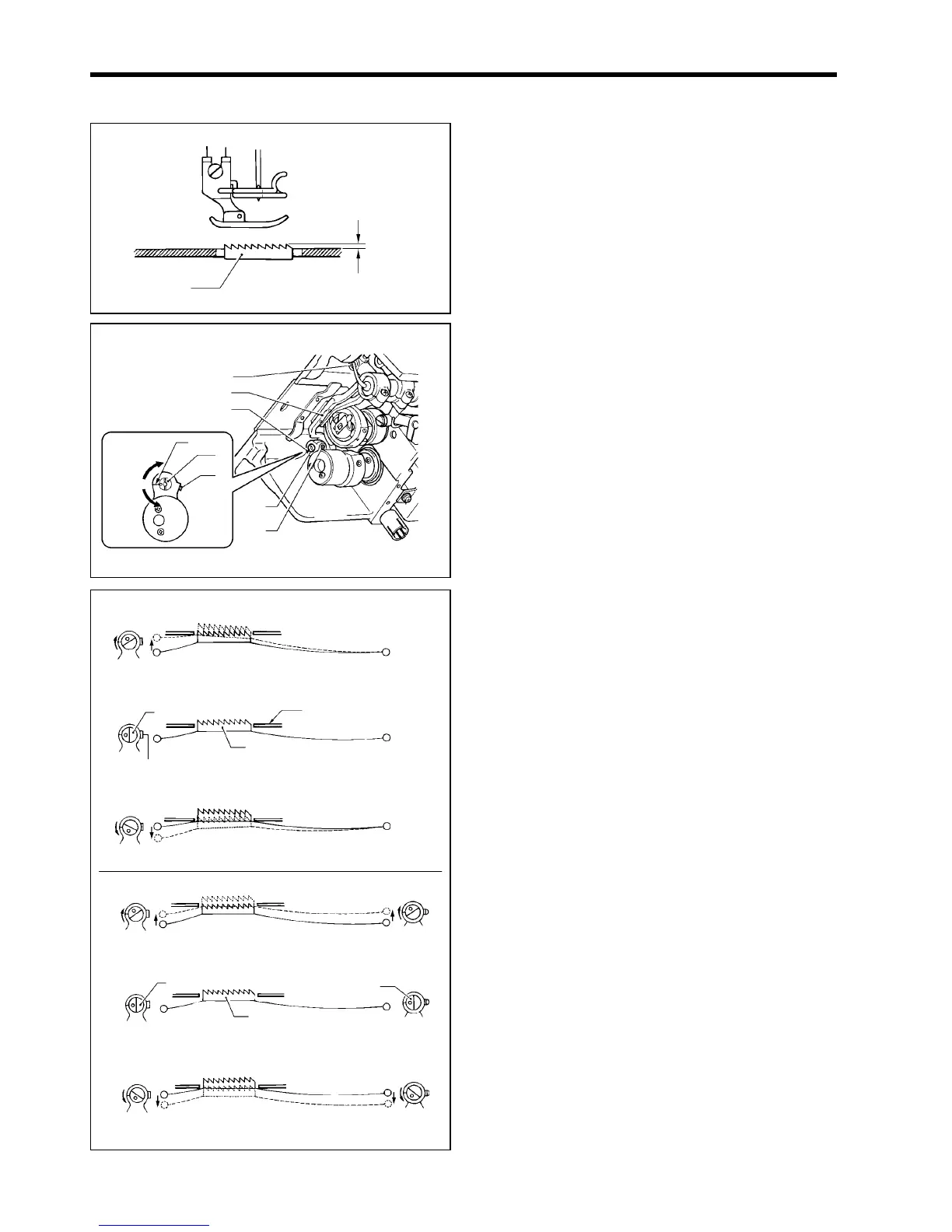

7-4. Adjusting of the feed dog height
The standard height of the feed dog (1) when it is at its
maximum height above the top of the needle plate is 0.8
mm for -[][]1/[][]3 models, and 1.2 mm for -[][]5 models.
1. Turn the pulley until the feed dog (1) rises to the
highest position.
2. Tilt back the machine head.
3. Loosen screw (2).
4. Turn the feed lifting rock bracket stud (3) within a
range of 90° from the reference line (4) to adjust the
vertical height of the feed bar (5). (Fig.[A])
5. Tighten the screw (2).
* If you are worried about the angle of the feed dog (1),
turn the shaft (6) while carrying out the above
adjustment. (Figure (B))
(Refer to "7-5. Adjusting the feed dog angle" on the
next page for details of this operation.)
1930M
(1)
<-[][]1, -[][]3>
0.8 mm
<-[][]5>
1.2 mm
1815M
1816M
Needle plate
[B]
[A]
(3)
(1)
(2)
(1)
(3)
(6)
1814M
(4)
(3)
(6)
(3)
(2)
(2)
(4)
Becomes
higher
(5)
Becomes
lower
Becomes higher
Standard
Becomes lower
Becomes higher
Standard
Becomes lower
Becomes higher
Standard
Becomes lower
