Brother S-710A - 6-31. Lubrication Procedure

6. ASSEMBLY
SL-710A
59

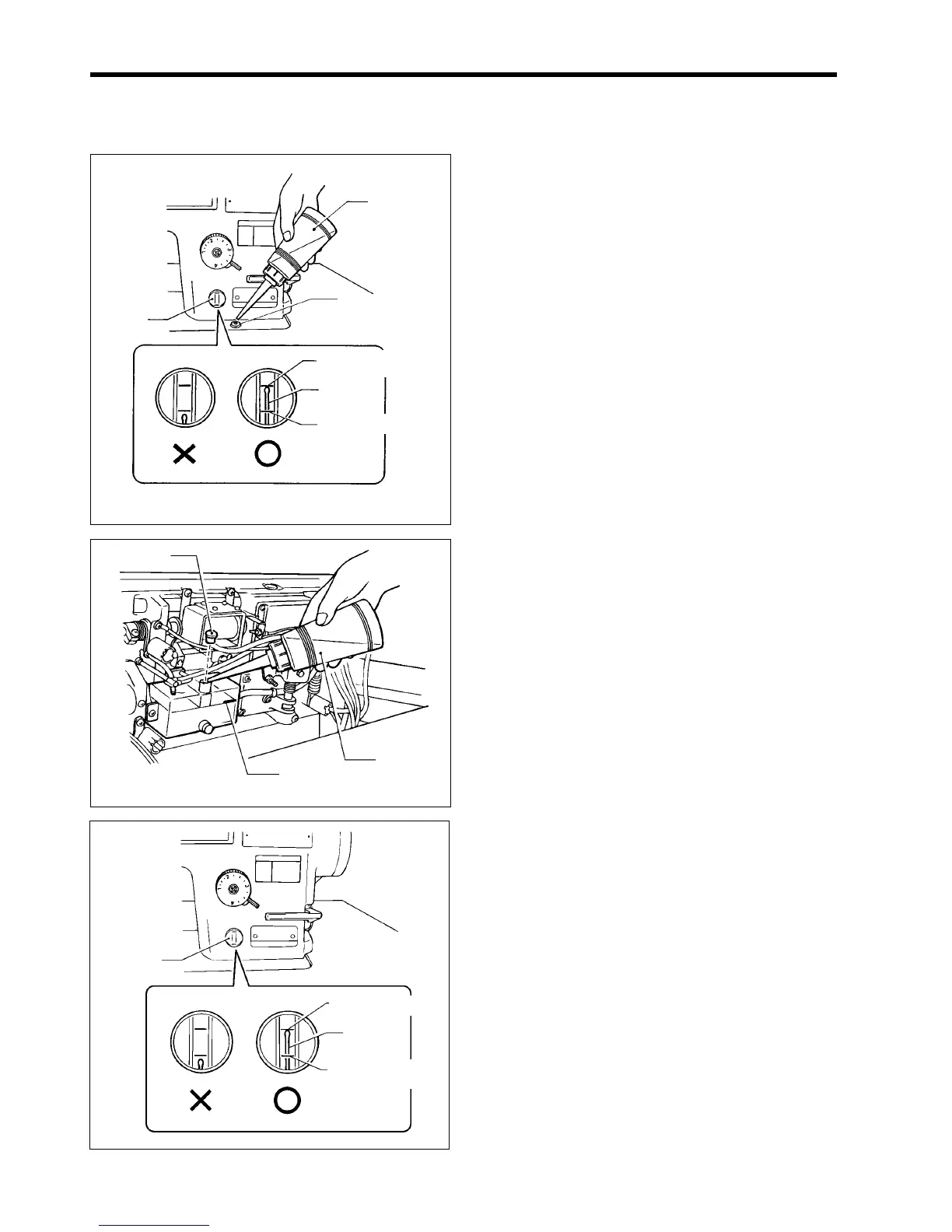

6-31. Lubrication
Use only the lubricating oil (Nisseki Mitsubishi Sewing Lube 10N; VG10) specified by Brother.
<DD7100A, 710A>
1. Pour 130 ml of lubricating oil from the accessory oil
bottle (2) in through the oil filler hole (1).
* Do not pour all of the lubricating oil in at once at this
time. Pour the lubricating oil bit by bit while checking
the oil gauge to make sure that the lubricating oil
does not overflow from the oil filler hole (1)
2. Check that the oil gauge comes to the upper reference
line in the oil gauge window (3).
<DD7100>
1. Remove the oil tank cap (1), and pour in 120 ml of
lubricating oil from the accessory oil bottle (2).
(Use the reference line as a guide when pouring.)
2. Replace the oil tank cap (1).
3. Return the machine head to its original position.
4. Check that the oil gauge comes to the upper reference
line in the oil gauge window (3).
0783M
(1)
(2)
Upper reference line
Oil gauge
Low reference line
(3)
1807M
(2)
(1)
Reference line
1808M
(3)
Upper reference line
Oil gauge
Low reference line
