Brother S-710A - 6-19. Tension Release Wire Assembly

6. ASSEMBLY
SL-710A
51

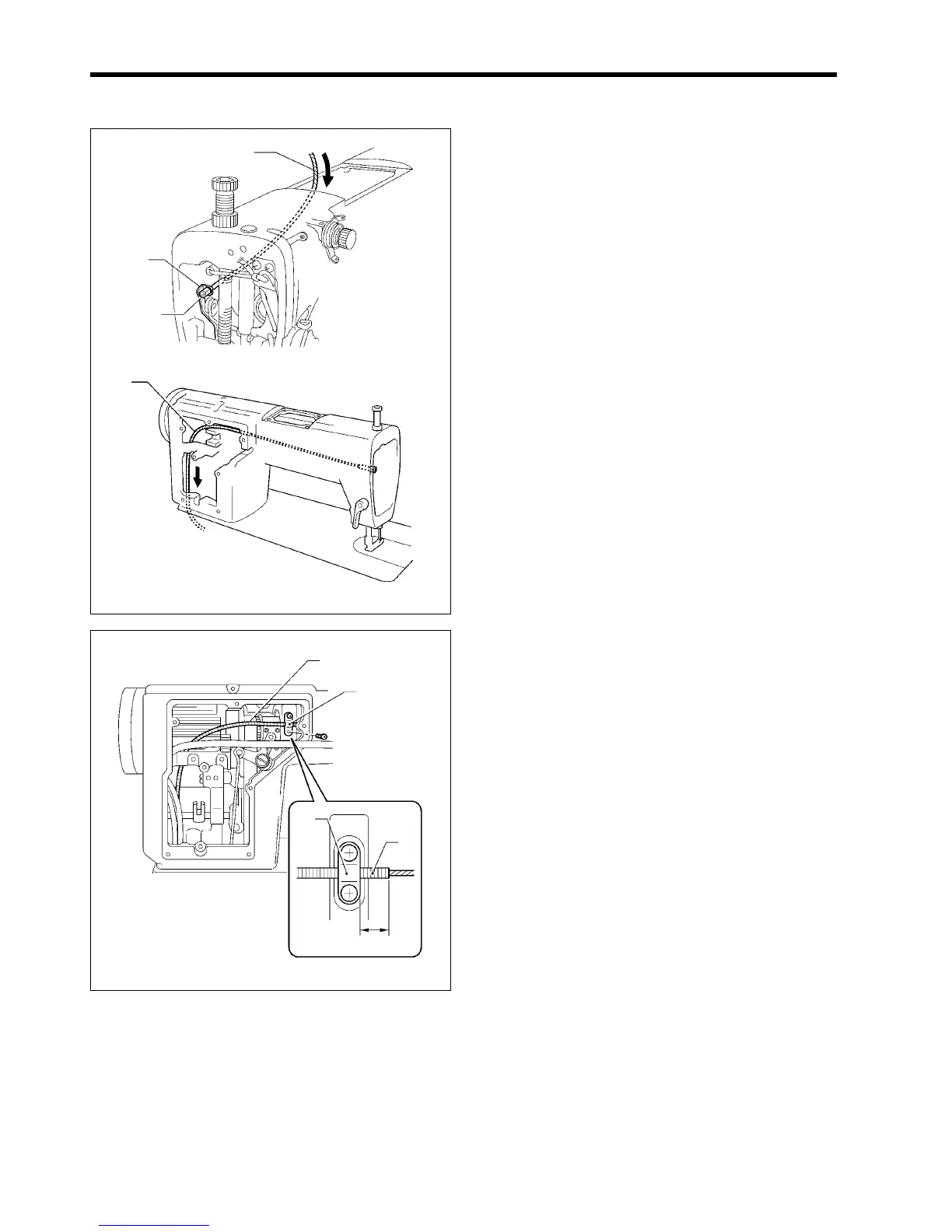

6-19. Tension release wire
1. Insert the terminal (2) end of the tension release wire
(1) through the top of the arm, and attach it to the
tension release plate (3).
2. Pass the other end of the tension release wire (1)
through the arm as shown in the illustration.
3. Secure the tension release wire (1) with the wire
holder (4) as shown in the illustration.
1786M
1785M
(1)
(2)
(3)
(1)
1787M
(1)
(4)
(1)
A
pprox. 10 mm
(4)
