6-12.Sub tank, wick holder and wick
<DD7100A, 710A>

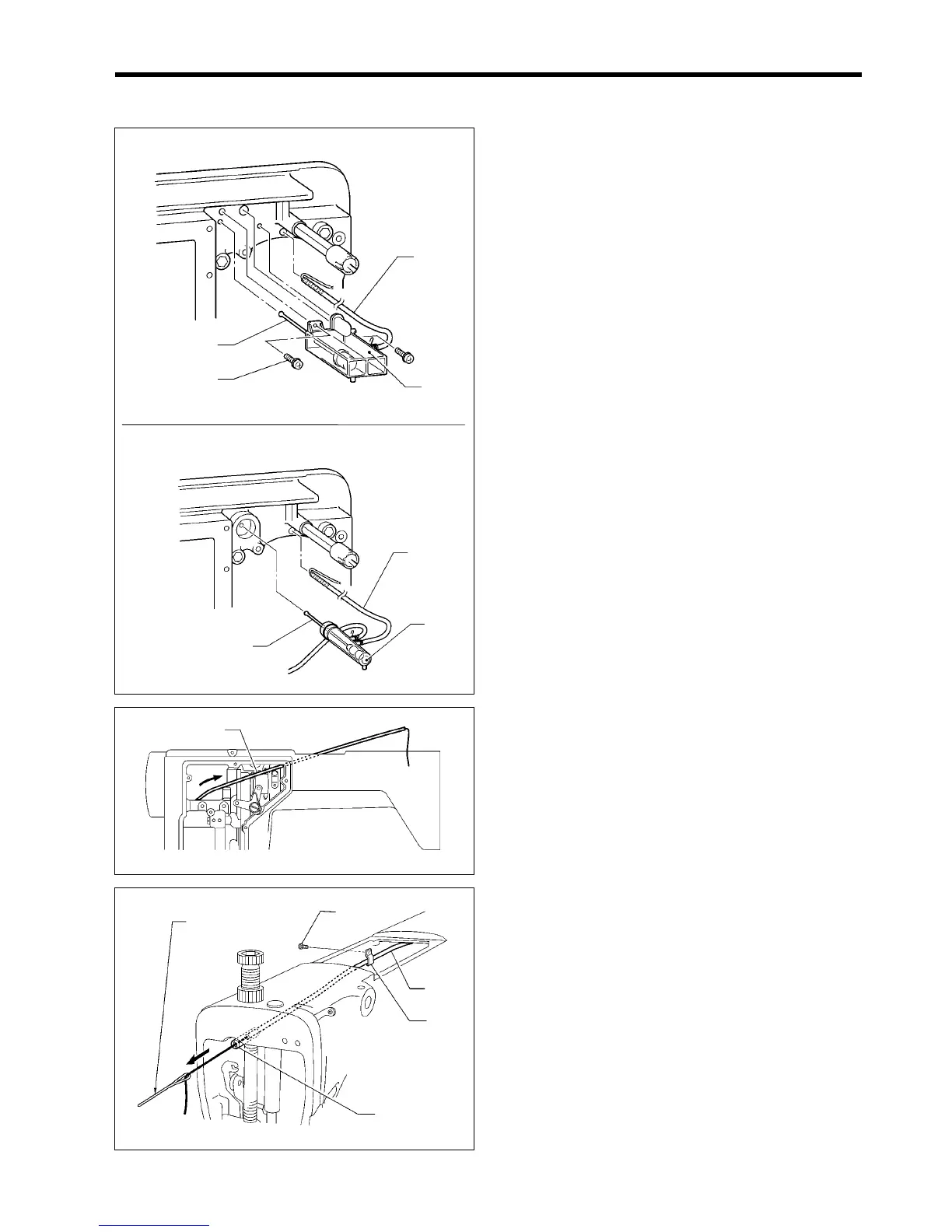

1. Install the sub tank (1) to the arm bed with the two
screws with washer (2).
* Be careful not to bend the oil gauge (3) at this time.
2. Insert all of the oil tubes (4) containing the wicks
through the hole in the arm bed.
(Continue to step 3.)
<DD7100>
1. Insert the oil gauge guide (1) into the mounting hole in
the arm bed so that it faces as shown in the
illustration.
* Be careful not to bend the oil gauge (3) at this time.
2. Insert all of the oil tubes (4) containing the wicks
through the hole in the arm bed.
3. Route the oil tube (4) as shown in the illustration.
4. Use piano wire or similar to pass the wick in the oil
tube (4) through the thread take-up support shaft (5)
5. Use your finger to check that the end of the oil tube (4)
is inserted into the hole in the thread take-up support
shaft (5).
6. Secure the oil tube (4) with the cord holder (6), and
tighten the screw (7) from outside the arm.
<DD7100A, 710A>
