Brother S-710A - 5-6. Wire and Solenoid Disassembly

5. DISASSEMBLY
SL-710A
19

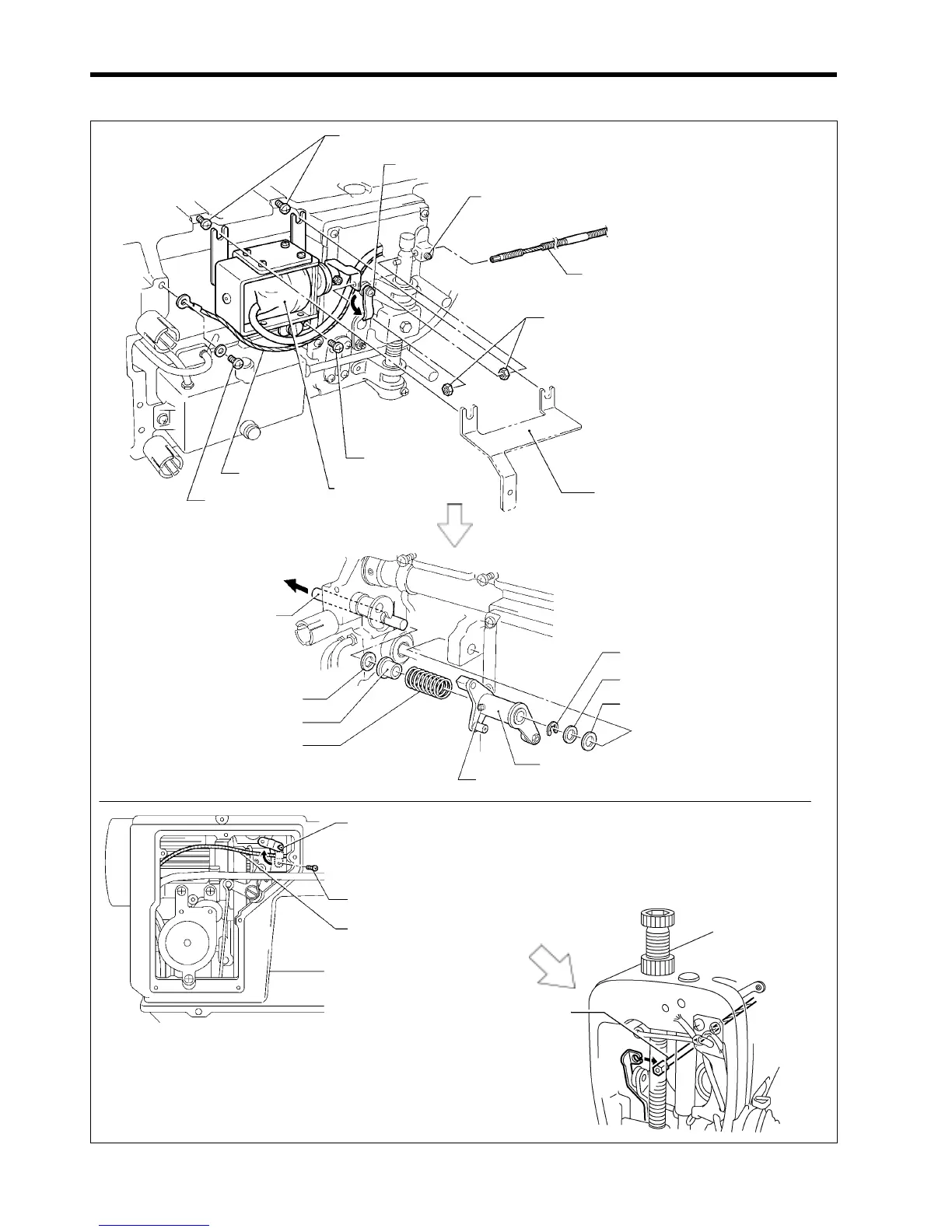

5-6.
Tension release wire, ground wire and thread trimmer solenoid
1
Screw [Loosen]
3
Tension release wire
[Remove from wire holder]
2
Screw
4
Tension release wire
[Pull out from machine head]
7
Screw [2 pcs: Loosen]
1
Screw [Loosen]
2
Set screw [Loosen]
4
Tension release wire
3
Nuts [2 pcs]
9
Thread trimmer solenoid
6
Ground wire
5 Screw
8
Screw
[DD7100A,710A only]
11
Retaining ring E
14
Washer
10
Set screw [Loosen]
16
Spring
13
Cushion
12
Thread trimmer cam
lever shaft (Pull out)
18
Rubber cushion
17
Collar
15
Thread trimmer cam lever assy
1669M
1671M
1670M
1668M
