5. DISASSEMBLY
SL-710A
17

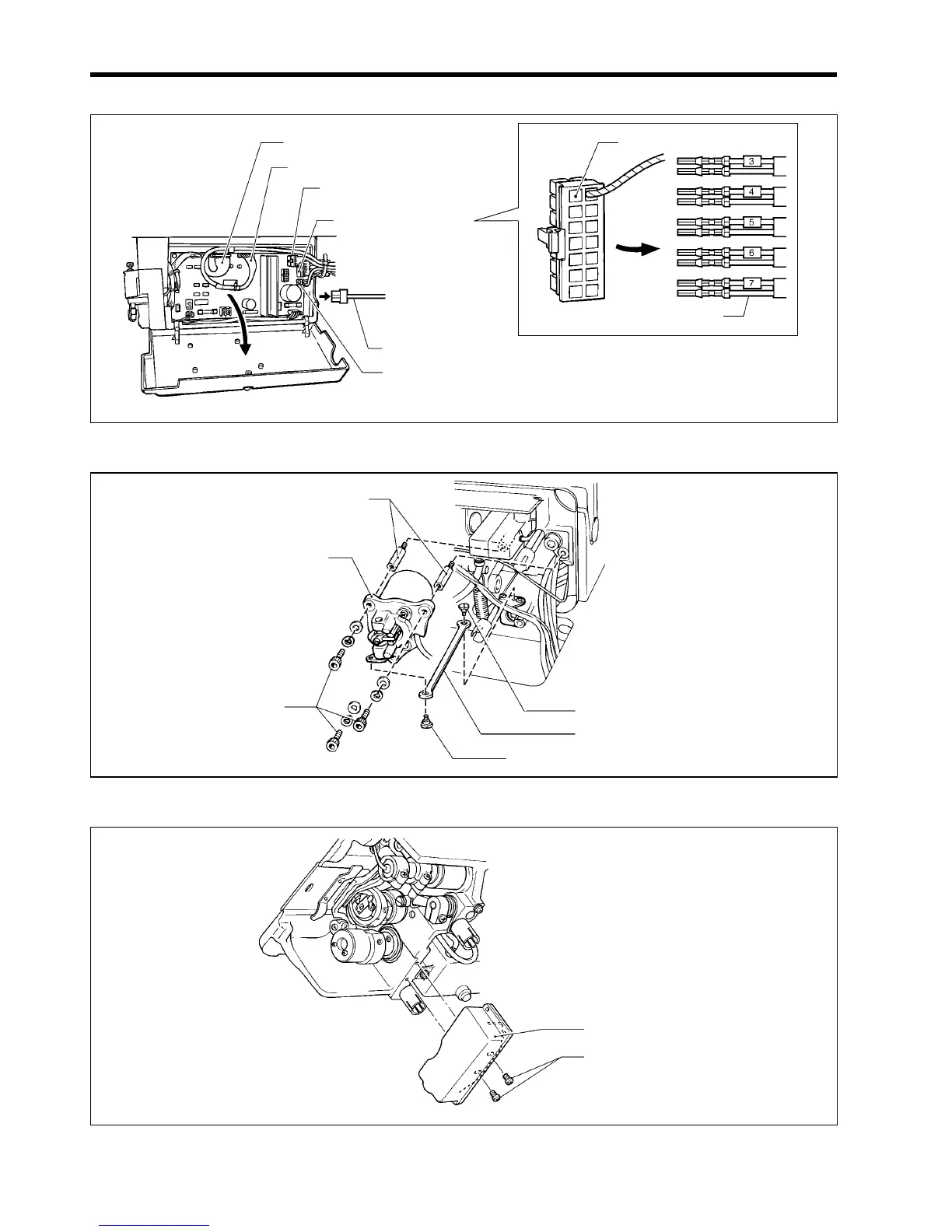

5-2. Connectors
5-3. Solenoid-type presser lifter (-9[][], Option)
5-4. Lower thread detector (-31[], -41[], -91[], Option)
1
Operating panel connector
2
Synchronizer connector
3
Lower thread detector connecto
r
4
Machine connector
6
Motor connector
5
Solenoid-type presser lifter connector
7 Pins
[Machine connector]
1663M
1662M
4
Studs [2 pcs]
1
Shoulder screw
6
Presser foot lifting rod
5
Shoulder screw
2
Bolts [3 pcs]
3
Presser lifter solenoid assy
1664M
1
Screws [2 pcs]
2
Lower thread detector
1665M
