6. ASSEMBLY
SL-710A
33

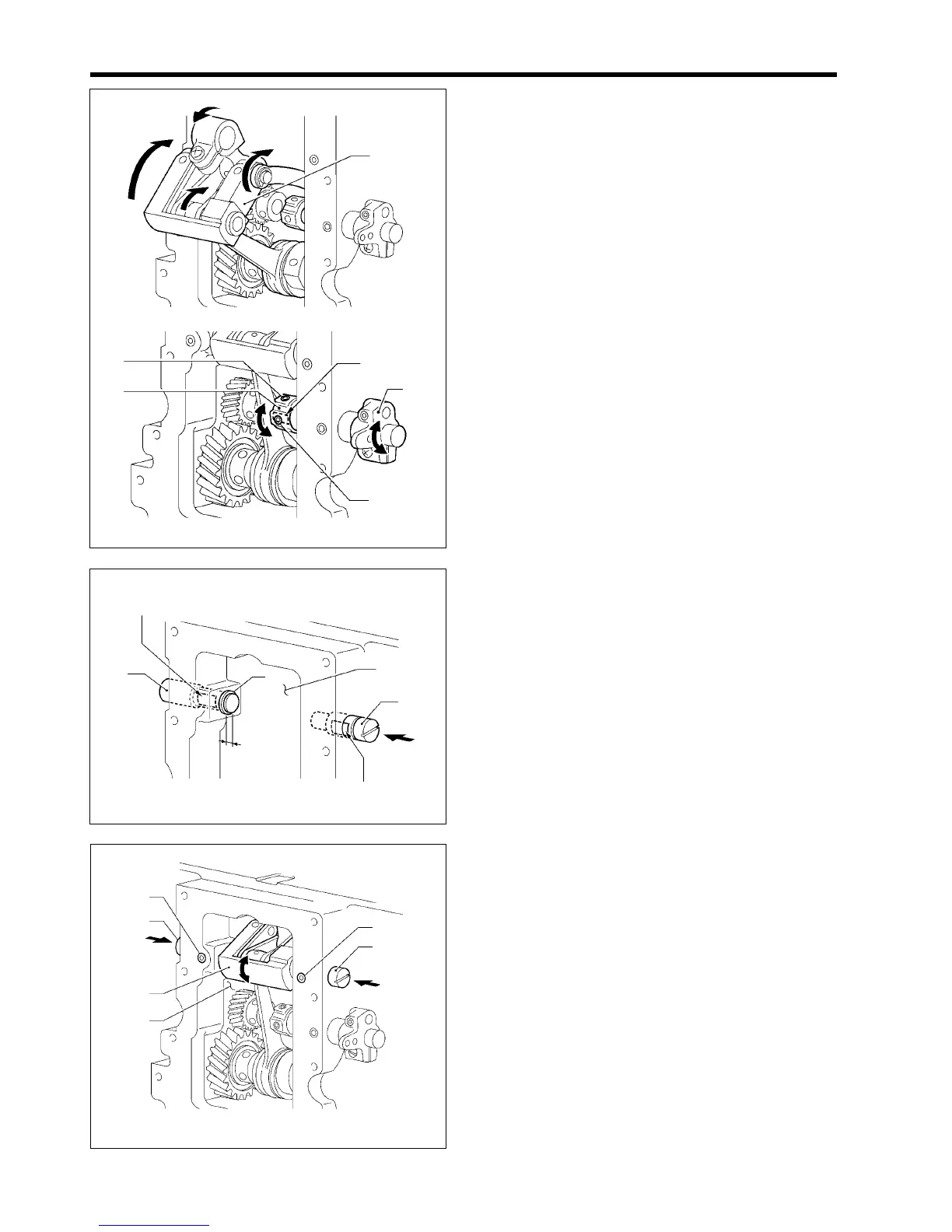

9. Push back the feed regulator (13) as shown in the
illustration, set so that the lower set screw (14) is
facing toward the front, align it with the screw stop of
the stud arm (11) and then tighten the set screw (14).
* Tighten the set screw (14) so that the stud arm (11)
and joint (12) turn smoothly with no play.
10. Tighten the upper set screw (15).
11. Insert the feed regulator support shaft (16) into the
gear box (17) as far as the inside edge and so that the
screw stop is facing toward the front.
12. Insert feed regulator shaft L (18) into the gear box (17)
so that it protrudes about 2--3 mm from the inside
edge and so that the screw stop is facing toward the
front, and then install the washer (19).
13. Push back the feed regulator (13) so that it goes into
the gear box (17), and then insert feed regulator shaft
L (18) and the feed regulator support shaft (16) into
the holes in the feed regulator (13).
14. Push feed regulator shaft L (18) further in until the feed
regulator (13) moves easily, and then tighten the set
screws (20) and (21).
1719M
1720M
(11)
(14)
(15)
(12)
(13)
Screw stops
1721M
(17)
(16)
(18)
2 - 3mm
Screw stops
Screw stops
(19)
1722M
(21)
(16)
(20)
(18)
(13)
(17)
