S-7300A
6. ASSEMBLY
91

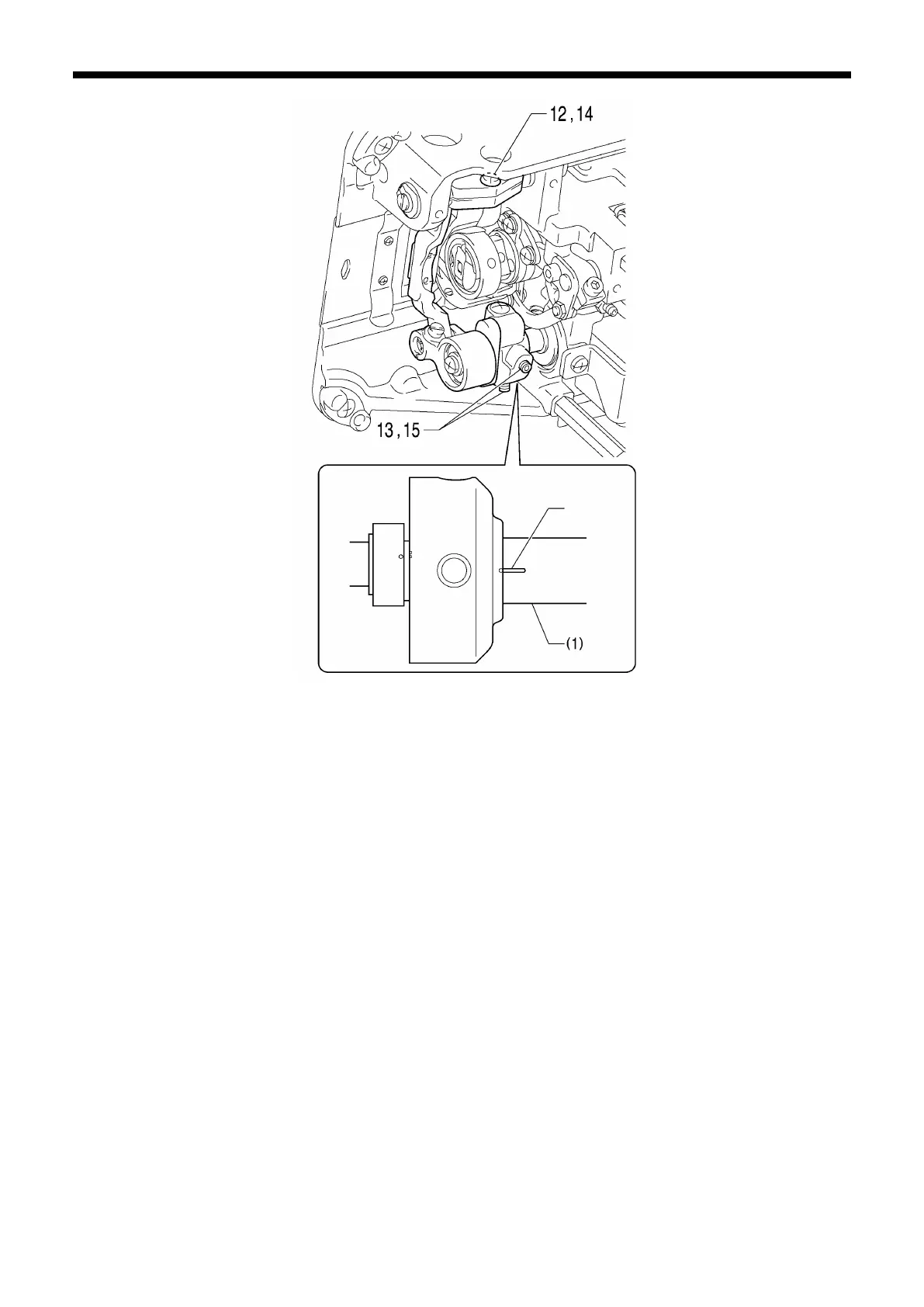

12. Screw (Align with the reference line on the lower shaft (1) and provisionally tighten)
13. Set screws [2 pcs] (Provisionally tighten)
14. Screw (After adjusting the feed dog position, fully tighten)
15. Set screws [2 pcs] (Align with the reference line on the lower shaft (1) and fully tighten)
(1) Lower shaft
1167D
Reference
line
