Chapter 5 Preparation function (canned cycle) TC-32B
2004/01/22 5 - 8 eTCOMNCPR5-1.doc
5
5.4 Details of canned cycle

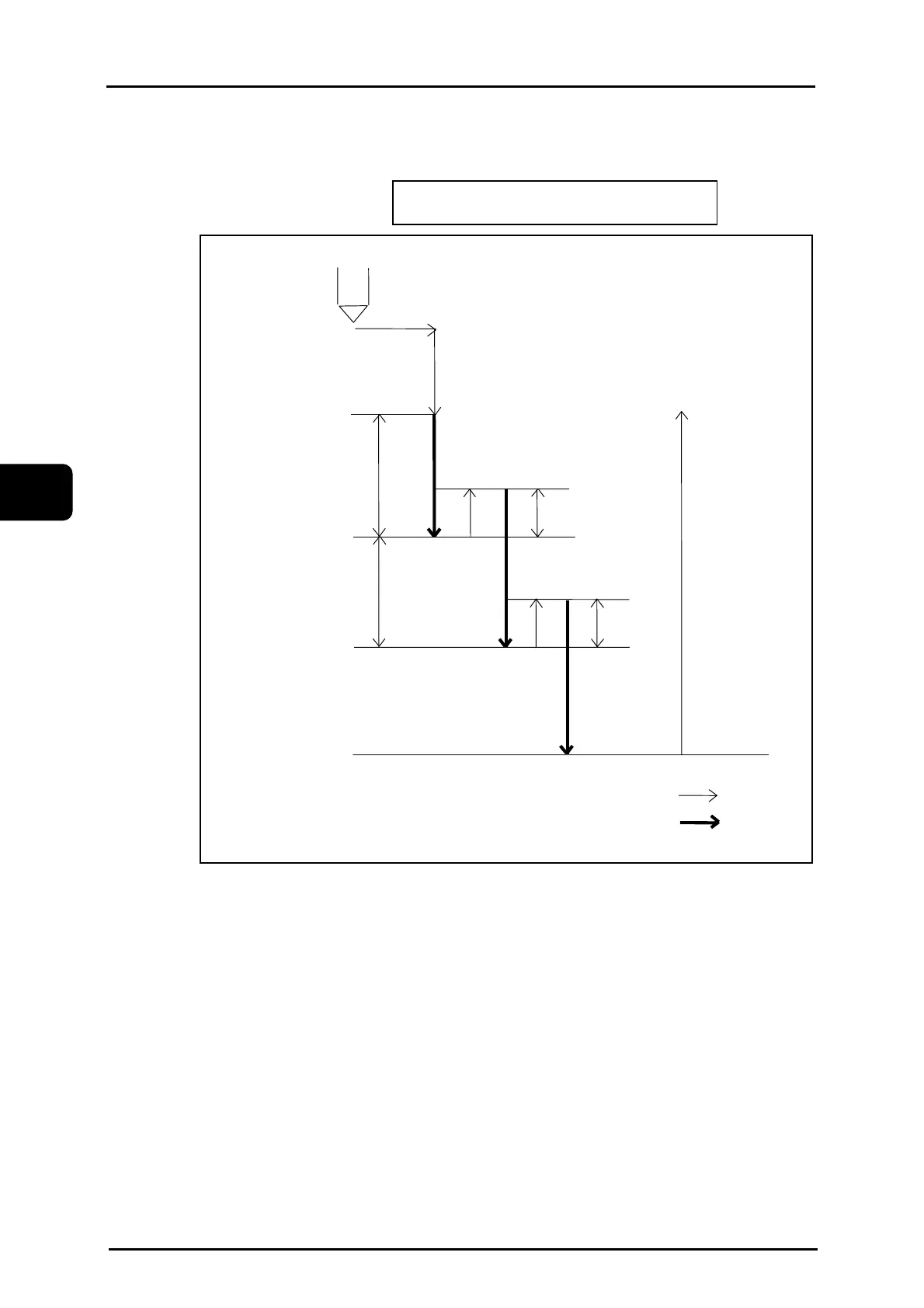

5.4.1 High-speed peck drilling cycle (G73)
Command format G73 X _ Y _ Z _ R _ P _ Q _ F _ ;
eNCPR5.05.ai
• The relief amount d is set by the parameter 1.
•
If the minus value is commanded for the cutting amount Q, the algebraic mark (-) is ignored.
R point
Z point
Q
Q
d
d
Dwelling for P sec
Return point
Rapid feed
Cutting feed
